20.6 m Electric Articulating Boom Lift — Fly Jib Equipped
20.6 m electric self-propelled articulating boom lift with three-segment boom plus 1.85 m fly jib geometry. 18.6 m platform height, 11.98 m working range, 7.85 m up-and-over clearance, dual capacity 256/350 kg, 2-3 occupants. 360° continuous turntable rotation, 160° platform rotation. 4.8 km/h stowed travel, 0.6 km/h raised, 45 percent gradeability, 300 mm ground clearance. Stowed envelope 8.49 m × 2.49 m × 2.38 m. 9,100 kg dead weight, 2,500 mm wheelbase.

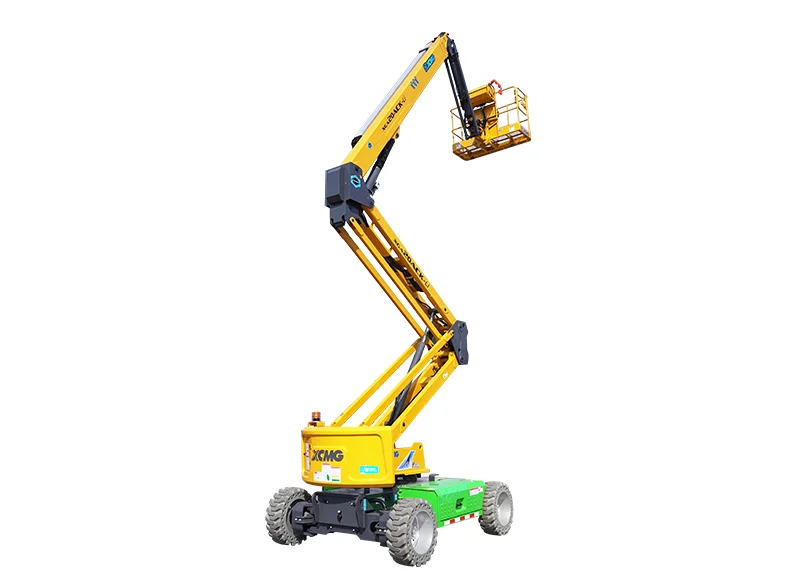

The XCMG XGA20ACK is a 20.6 m electric self-propelled articulating boom lift with three-segment boom plus fly jib geometry, built for outdoor mid-rise construction, steel structure work, and infrastructure maintenance.
18.6 m platform height, 11.98 m working range, 7.85 m up-and-over clearance, dual capacity 256/350 kg, 2-3 occupants. Three-segment boom with 1.85 m fly jib: first boom 0–72°, second boom 0–73°, fly jib -65 to +70°. 360° continuous turntable rotation, 160° platform rotation. 4.8 km/h stowed travel, 0.6 km/h raised, 45 percent gradeability, 300 mm ground clearance. 5,000 mm outside turning radius, 560 mm stowed turntable tailswing. Stowed envelope 8.49 m × 2.49 m × 2.38 m. 9,100 kg dead weight, 2,500 mm wheelbase. Sized for outdoor construction sites with sloped terrain, façade access on mid-rise buildings, and structural steel access. Battery-electric drivetrain for emission-limited project work.
Five aspects of the XGA20ACK that fit it to 20-meter articulating boom lift work with fly jib geometry: working envelope, fly jib, 360° continuous slew, 45 percent slope rating, and XCMG parts support.
20.6 m maximum working height, 18.6 m platform height, 11.98 m horizontal working range, 7.85 m up-and-over clearance — sized for outdoor mid-rise construction, multi-story façade access, structural steel work, and infrastructure maintenance projects.
Three-segment boom plus 1.85 m fly jib. First boom 0 to +72°, second boom 0 to +73°, fly jib -65 to +70°. 7.85 m up-and-over clearance lets the platform clear obstacles and reach work faces blocked by rooftop equipment, parapets, or scaffolding. 160° platform rotation for fine work positioning.
360° continuous turntable rotation — no slew stops. Dual capacity load chart: 256 kg unrestricted / 350 kg restricted, 2-3 occupants. Lets project crews size load configuration to actual task without giving up full-envelope work in lighter modes.
45 percent maximum gradeability, X-5°/Y-5° max working slope. Suited for outdoor sloped construction sites, infrastructure access roads, and uneven terrain — beyond the slope envelope of indoor-tuned 16-meter electric units. 4.8 km/h stowed drive speed, 0.6 km/h raised. 5,000 mm outside turning radius, 560 mm stowed turntable tailswing.
Platform components, control valves, boom pins, and chassis parts share core part numbers with other XCMG aerial work platforms (including the 20-meter XGA20ACE-AS sibling) — lower inventory carrying cost for rental fleet operators running mixed XCMG rosters. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Working height | mm | 20600 |
| Max. platform height | m | 18.6 |
| Max. working range | m | 11.98 |
| Max. up-and-over clearance | m | 7.85 |
| Lift capacity | kg | 256 (unrestricted) / 350 (restricted) |
| Max. occupants | - | 2/3 |
| Overall dimension - stowed | mm | 8490×2490×2380 |
| Overall dimension - transportation | mm | 8490×2270×2380 |
| Platform dimensions | mm | 1800×760×1100 |
| Wheelbase | mm | 2500 |
| Fly jib length | mm | 1850 |
| Ground clearance | mm | 300 |
| 1st boom luffing range | ° | 0 to +72 |
| 2nd boom luffing range | ° | 0 to +73 |
| Fly jib luffing range | ° | -65 to +70 |
| Turntable rotation | ° | 360 |
| Platform rotation | ° | 160 |
| Drive speed (stowed) | km/h | 4.8 |
| Drive speed (up or extended) | km/h | 0.6 |
| Min. turning radius (outside) | mm | 5000 |
| Turntable tailswing (stowed) | mm | 560 |
| Max. gradeability | % | 45 |
| Total weight | kg | 9100 |
