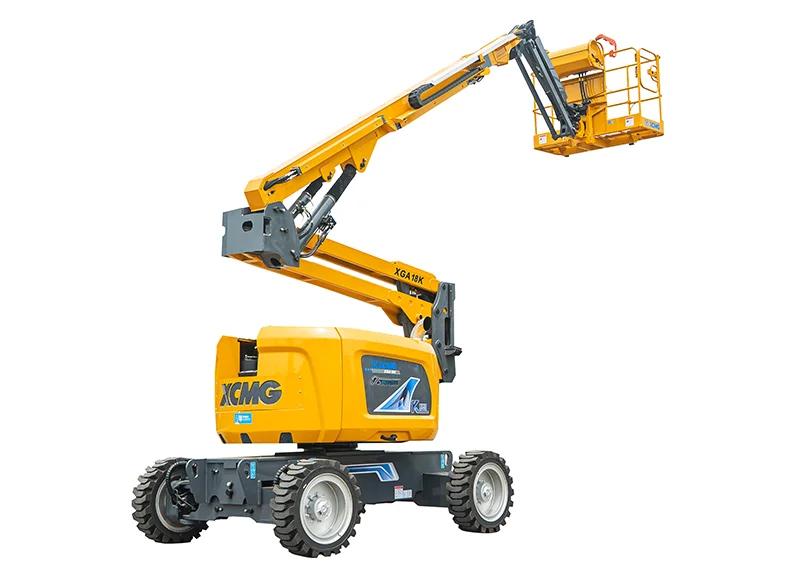

XCMG XGA18K Articulating Boom Lift

18.01 m maximum working height with 16.01 m platform height — sized between the 16.63 m XGA16K and 20.63 m XGA20K. Fits projects where the 16 m unit falls 2 m short and the 20 m unit's heavier transit overhead is not justified. Typical for tall warehouse interiors, low-rise industrial buildings, and steel structure connections.

Sigma Y-shaped linkage folding hybrid arm structure — compact stowed dimensions 7,640 x 2,320 x 2,380 mm. Transport dimensions 5,700 x 2,320 x 2,550 mm fit standard low-bed trailers without escort overhead. Y-linkage design folds the arm tighter than straight-stick boom designs in the same working height class.

350 kg restricted-reach load capacity and 256 kg unrestricted-envelope load — same load envelope as the larger XGA20K. The dual-load configuration supports trade crews handling cladding, MEP rough-in, lighting fixtures, and steel connection work at moderate reach.

Second boom luffing range -11 to +75 degrees, giving 7.7 m maximum up-and-over clearance — reach work areas on the far side of obstacles up to 7.7 m wide without repositioning the chassis. 1,420 mm flying jib with -65 to +70 degree luffing extends fine-position work envelope.

Rated for 2 or 3 occupants depending on platform load configuration. 3-occupant rating supports trade crews where two workers carry materials and a third performs install — typical for cladding, MEP rough-in, and steel connection work.
