Engine-powered articulating boom lift with 16.63 m maximum working height. 14.63 m platform height, 8.82 m maximum working range. Load capacity 320 kg restricted / 226 kg unrestricted. 7,600 kg total weight, 2,360 mm wheelbase. Travel speed 5.5 km/h stowed, 1 km/h raised. 45 percent maximum gradeability — higher than the 40 percent rating on the XGA12K-AS. 355-degree turntable rotation. Positioned between the XGA12K-AS (12.5 m) and XGA20K-AS (20.63 m) in the AS line.

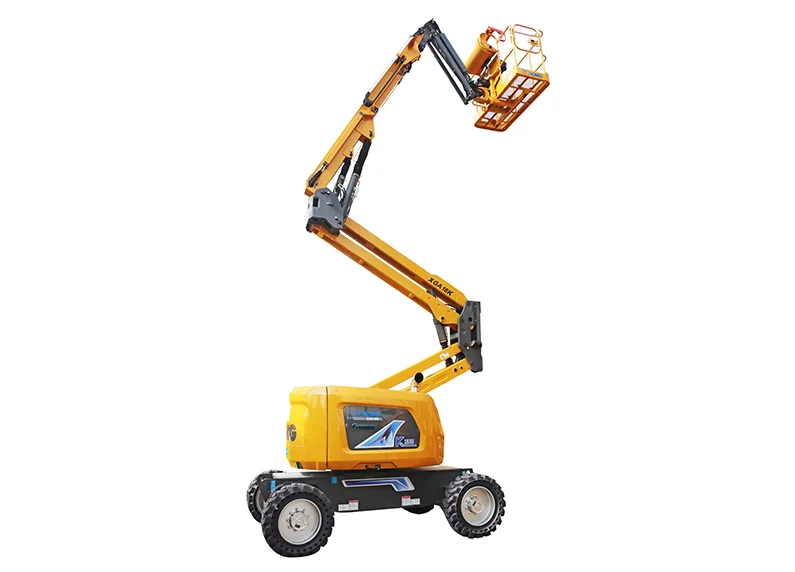

The XGA16K-AS is a 16.63 m engine-powered articulating boom lift in XCMG's XGA-K-AS series. Platform height is 14.63 m and maximum working range is 8.82 m. Load capacity is 320 kg in restricted mode and 226 kg unrestricted. The first boom luffs from 0 to +65 degrees and the second boom from -11 to +75 degrees. Turntable rotation is 355 degrees.
Total weight in travel is 7,600 kg. Wheel base is 2,360 mm. Travel speed is 5.5 km/h stowed and 1 km/h with the boom raised or extended. Maximum gradeability is 45 percent. The dual-capacity rating supports two-person trade crews handling cladding, MEP install, lighting fixtures, and steel structure connections within the restricted reach envelope.
Positioned in the XGA-K-AS range between the 12.5 m XGA12K-AS and the 20.63 m XGA20K-AS. Suited to construction, steel structures, petrochemical maintenance, venue install, and rental fleets where a 16 m engine-powered boom lift covers most low-rise commercial and industrial access work without the transit overhead of larger siblings.
