Engine-powered articulating boom lift with 16.63 m maximum working height. 14.63 m platform height, 8.82 m maximum working range, 7.7 m up-and-over clearance. Lift capacity 350 kg restricted / 256 kg unrestricted — higher than the AS-platform sibling XGA16K-AS (320/226 kg). 7,600 kg total weight, 2,360 mm wheelbase. Travel speed 5.5 km/h stowed, 0.6 km/h raised. 45 percent maximum gradeability. 355-degree turntable rotation, 160-degree platform rotation. Sigma Y-shaped linkage folding hybrid arm.

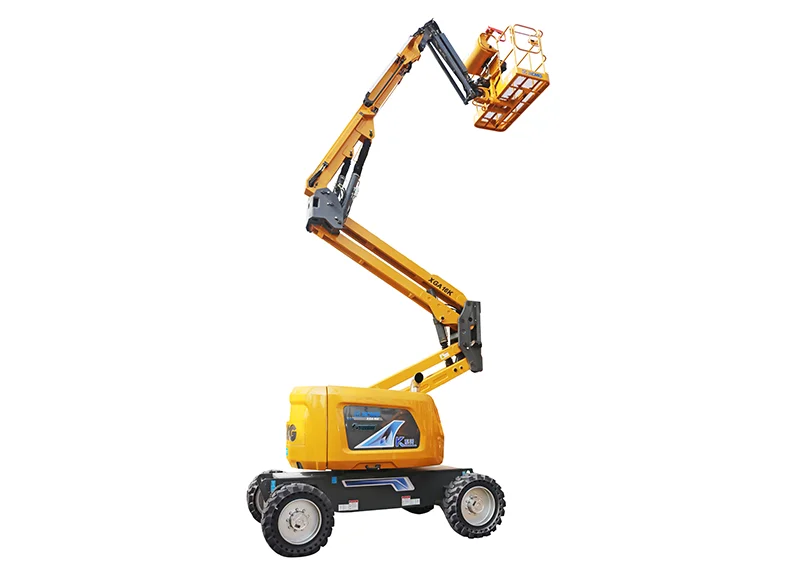

The XGA16K is a 16.63 m engine-powered articulating boom lift from XCMG. Platform height is 14.63 m and maximum working range is 8.82 m. Lift capacity is 350 kg restricted and 256 kg unrestricted. Up-and-over clearance is 7.7 m. The first boom luffs from 0 to +65 degrees, the second from -11 to +75 degrees, and the 1,420 mm flying jib from -65 to +70 degrees. Turntable rotation is 355 degrees; platform rotation is 160 degrees.
Total weight is 7,600 kg. Stowed dimensions are 6,850 x 2,320 x 2,380 mm; transport dimensions are 5,600 x 2,320 x 2,650 mm. Wheel base is 2,360 mm. Travel speed is 5.5 km/h stowed and 0.6 km/h boom-raised. Maximum gradeability is 45 percent.
Sigma Y-shaped linkage folding hybrid arm — compact layout for efficient obstacle crossing. Higher load envelope than the AS-platform sibling XGA16K-AS (350 kg vs 320 kg restricted, 256 kg vs 226 kg unrestricted). Maximum occupants 2 or 3 depending on platform load. Suited to construction, steel structures, petrochemicals, venue install, and rental fleets across general low-to-mid-rise access work.
