16 m Electric Articulating Boom Lift — Compact, Zero Tailswing
16 m electric self-propelled articulating boom lift in a compact stowed envelope (6.56 m × 1.75 m × 2.0 m). 14 m platform height, 8.1 m working range, 7.6 m up-and-over clearance, 230 kg capacity, 2 occupants. Three-segment boom with 1.24 m fly jib: first boom -12 to +65°, second boom -5 to +73°, fly jib -65 to +70°. 355° turntable, 160° platform rotation. 1,100 mm inside / 3,300 mm outside turning radius, zero turntable tailswing. 6,700 kg total weight. Battery-electric drivetrain.

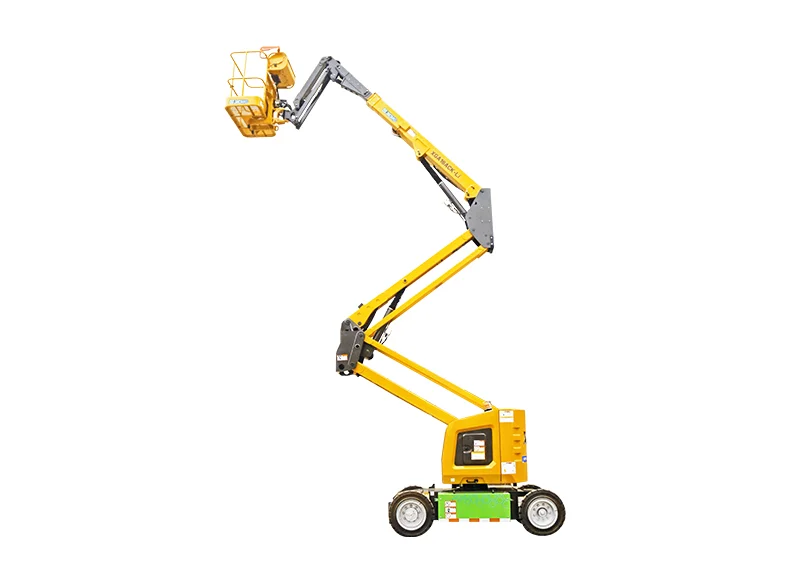

The XCMG XGA16ACKII is a 16 m electric self-propelled articulating boom lift in a compact stowed envelope (6.56 m length × 1.75 m width × 2.0 m height) — built for indoor warehouse, retail fit-out, and tight-corridor maintenance work.
14 m platform height, 8.1 m working range, 7.6 m up-and-over clearance, 230 kg lift capacity, 2 occupants. Three-segment boom geometry with 1.24 m fly jib: first boom -12 to +65°, second boom -5 to +73°, fly jib -65 to +70°. 355° turntable rotation and 160° platform rotation. 4.8 km/h stowed drive, 0.6 km/h raised. 1,100 mm inside / 3,300 mm outside turning radius and zero turntable tailswing for tight-aisle work. 30 percent gradeability, 250 mm ground clearance. 6,700 kg total weight. Battery-electric drivetrain suits the unit to indoor maintenance, façade and signage work, and rental fleet duty in emission-limited urban projects.
Five aspects of the XGA16ACKII that fit it to compact 16-meter articulating boom lift work: stowed envelope, three-segment boom plus fly jib, zero-tailswing turntable, indoor electric drivetrain, and XCMG parts support.
Stowed dimensions of 6.56 m length × 1.75 m width × 2.0 m height. The sub-2 m height and sub-1.8 m width let the unit pass through standard freight doors, container openings, and warehouse roll-up doors. Transportation profile of 5.65 m × 1.75 m × 2.4 m. 250 mm ground clearance.
Three-segment boom geometry with 1.24 m fly jib. First boom -12 to +65°, second boom -5 to +73°, fly jib -65 to +70°. Delivers 7.6 m maximum up-and-over clearance — useful for working over rooftop equipment, mezzanine edges, ductwork, and warehouse rack systems where the platform must clear an obstacle to reach the work face.
Zero turntable tailswing when stowed — the rear of the turntable does not extend past the chassis during slew. Combined with 1,100 mm inside / 3,300 mm outside turning radius and 160° platform rotation, the unit can slew and maneuver in tight retail and warehouse aisles without contacting adjacent obstructions.
Battery-electric drivetrain — 4.8 km/h stowed travel, 0.6 km/h raised or extended, 30 percent gradeability. Zero on-site emissions for indoor warehouse, retail fit-out, and factory floor maintenance. 230 kg lift capacity, 2 occupant rating, X-3°/Y-3° max working slope.
Platform components, control valves, boom pins, and chassis parts share core part numbers with other XCMG aerial work platforms — lower inventory carrying cost for rental fleet operators running mixed XCMG rosters. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | m | 16 |
| Max. platform height | m | 14 |
| Max. working range | m | 8.1 |
| Max. up-and-over clearance | m | 7.6 |
| Lift capacity | kg | 230 |
| Max. occupants | - | 2 |
| Overall dimension - stowed | mm | 6560×1750×2000 |
| Overall dimension - transportation | mm | 5650×1750×2400 |
| Platform dimensions | mm | 1400×700×1150 |
| Wheelbase | mm | 2010 |
| Fly jib length | mm | 1240 |
| Ground clearance | mm | 250 |
| 1st boom luffing range | ° | -12 to +65 |
| 2nd boom luffing range | ° | -5 to +73 |
| Fly jib luffing range | ° | -65 to +70 |
| Turntable rotation | ° | 355 |
| Platform rotation | ° | 160 |
| Drive speed (stowed) | km/h | 4.8 |
| Drive speed (up or extended) | km/h | 0.6 |
| Min. turning radius (inside/outside) | mm | 1100 / 3300 |
| Turntable tailswing (stowed) | mm | 0 |
| Max. gradeability | % | 30 |
| Total weight | kg | 6700 |
