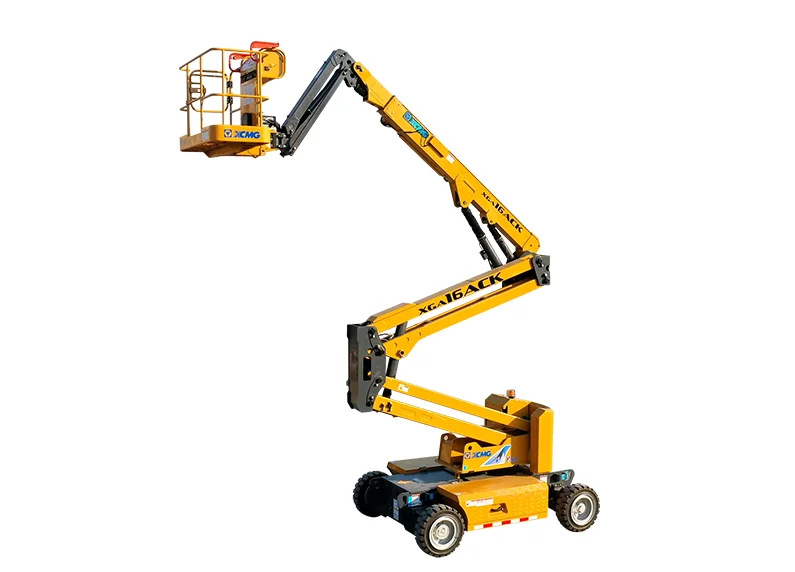

XCMG XGA16ACK-AS Articulating Boom Lift

Dual platform capacity of 256 kg in unrestricted mode and 350 kg in restricted mode supports projects that need two occupants plus tooling (350 kg restricted) without losing full envelope work in lighter configurations. Working envelope: 16.5 m maximum working height, 14.5 m platform height, 8.6 m horizontal working range.

Three-segment boom geometry: first boom luffs 0 to 72°, second boom luffs 0 to 73°. Both segments reach above 70° positive luff for high-angle work and up-and-over geometry across rooftop equipment, parapets, and mezzanine edges. Three-segment design adds reach flexibility versus two-segment 16-meter siblings.

Full 360° continuous turntable rotation — no fixed slew limits. Lets the operator reposition the platform across a complete swing without stopping at slew stops or repositioning the chassis. Useful for circumferential work patterns around fixed structures and for repositioning to opposite sides of vehicle paths or storage aisles.

Sits above the entry-level XGA16ACE-AS sibling: +0.7 m platform height (14.5 vs 13.8 m), +0.4 m working range (8.6 vs 8.2 m), dual-capacity load chart (vs single 227 kg), and 360° continuous slew (vs 355°). Choose XGA16ACK-AS when project needs 350 kg restricted capacity or continuous slew; choose XGA16ACE-AS for lower entry cost on lighter envelopes.

Platform components, control valves, boom pins, and chassis parts share core part numbers with other XCMG aerial work platforms — lower inventory carrying cost for rental fleet operators running mixed XCMG rosters. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
