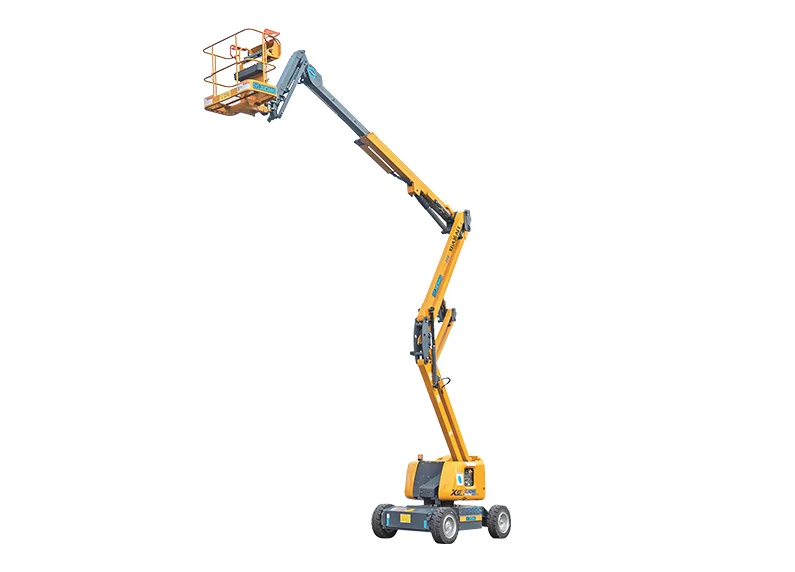

XCMG XGA16ACE-AS Articulating Boom Lift

15.8 m maximum working height delivers 13.8 m platform height and 8.2 m horizontal working range with 227 kg lift capacity. Sized for warehouse maintenance, retail fit-out, indoor MEP installation, and low-to-mid façade access. 355° turntable rotation lets the operator reposition over a complete swing without repositioning the chassis.

First boom luffs 0 to 60°, second boom luffs -8 to +75°. The negative luff range on the second boom lets the platform drop below pivot height for under-obstacle access, while the +75° upper range supports up-and-over reach across fixed obstructions like roof parapets, mezzanine edges, and storage racks.

Battery-electric 4WD drivetrain — 5.2 km/h stowed travel, 0.6 km/h raised or extended, 30 percent gradeability. Zero on-site emissions for indoor warehouse, retail, factory floor, and emission-limited urban site work. 6,900 kg total weight, 2,010 mm wheelbase.

Sits at the entry of the XCMG 16-meter articulating boom lift line. The XGA16ACK-AS sibling adds 0.7 m platform height (14.5 vs 13.8 m), 0.4 m more working range (8.6 vs 8.2 m), and dual-capacity load chart (256 kg unrestricted / 350 kg restricted vs 227 kg single mode). Choose XGA16ACE-AS for lower entry cost when 227 kg single mode meets the project load envelope.

Platform components, control valves, boom pins, and chassis parts share core part numbers with other XCMG aerial work platforms — lower inventory carrying cost for rental fleet operators running mixed XCMG rosters. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
