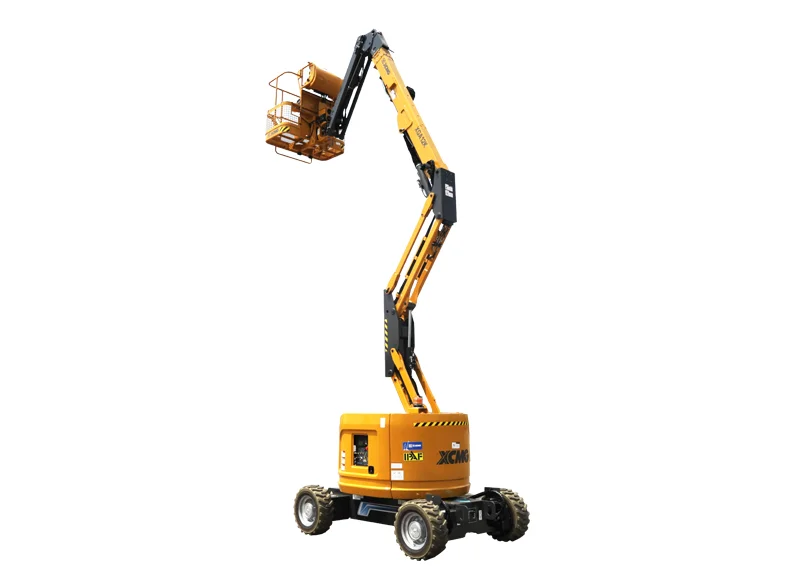

XCMG XGA12K-AS Articulating Boom Lift

12.5 m maximum working height with 10.5 m platform height — the smallest engine-powered articulating boom lift in XCMG's XGA-K range. Sized below the 16.63 m XGA16K-AS and 20.63 m XGA20K-AS for projects where extra reach is overkill but a diesel boom lift is still required. Suited to commercial fit-out, retail and warehouse maintenance, and low-rise industrial install work.

2,010 mm wheelbase — narrowest in the engine-powered XGA-K articulating boom lift range (vs 2,360 mm on the XGA16K-AS, 2,500 mm on the XGA20K-AS, 3,000 mm on the XGA26K-AS, 5,220 mm on the XGA48K). Fits tighter site access where the larger siblings do not — narrow gates, equipment-crowded factory interiors, and tight municipal lots.

5,600 kg total weight — less than 30 percent of the 16,500 kg XGA26K-AS and 20 percent of the 27,380 kg XGA48K. Lighter trailer and tow vehicle requirements, simpler road transport permits, and lower per-trip transport costs for rental fleets that move boom lifts between sites frequently.

40 percent maximum gradeability. Travel speed 5 km/h stowed, 1.1 km/h with boom raised. Suited to outdoor construction sites and rough yards where the boom must self-drive between work positions on uneven ground — not limited to flat indoor floors like comparable mast or scissor lifts in the 12 m class.

Shares the updated AS chassis platform with the XGA16K-AS, XGA20K-AS, and XGA26K-AS — parts pool overlap for fleet operators running multiple sizes. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
