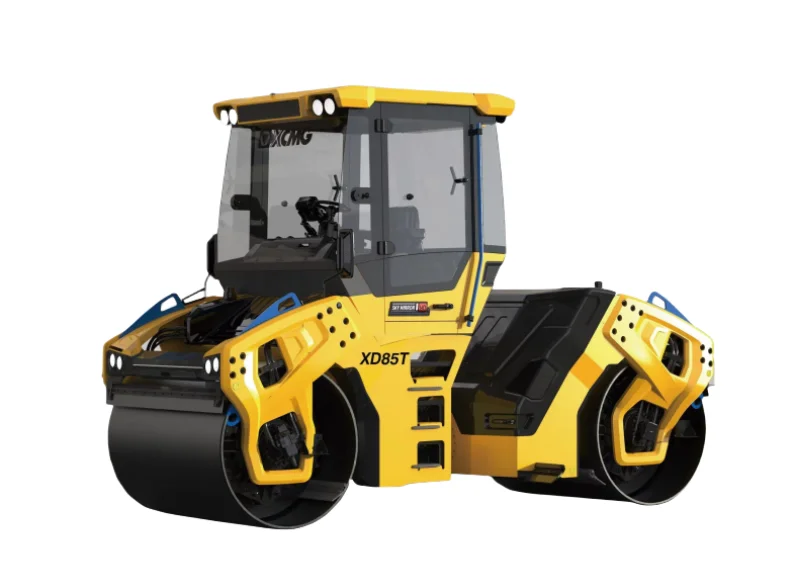

XCMG XD85T (EU Stage III) Double Drum Vibratory Roller

Two equal-width 1,680 mm steel drums each delivering 245 N/cm static linear load. Symmetrical front/rear loading suits asphalt top-layer finish work where the contractor needs even compaction across both drums for surface quality, rather than the depth penetration of single-drum machines. Operating weight 8,400 kg keeps the machine in the mid-size tandem class for highway resurfacing crews.

Two-setting vibration: 48 Hz at 84 kN excitation for thicker lifts and base-binder layers, 55 Hz at 52 kN for thinner top-layer finish work. Single operator switch lets crews handle multiple lift specifications in one shift without machine swap. 35 percent theoretical gradeability covers routine highway shoulder and ramp work.

Powered by a Kubota V3307 diesel rated 55.4 kW at 2,400 r/min. The V3307 is a 3.3-liter inline-four widely used across construction equipment, agricultural machinery, and industrial equipment lines — established Kubota parts and service networks across European, North American, Japanese, and major export markets reduce time-to-parts for unscheduled service events.

Certified to EU Stage III emission standard. Eligible for project work in European Union jurisdictions accepting Stage III certification, which covers a broad range of non-road mobile machinery use cases. XCMG also produces newer-stage variants in the same XD chassis family — XD85T (EU Stage III) targets contractors balancing emission compliance and acquisition cost.

Specified by XCMG for high-end European and North American market customers and special working conditions. Sized for compacting asphalt pavement, layered materials at varied thickness, and large engineering projects: roads, parking lots, and airports. XCMG identifies it as a fit for asphalt top-layer construction in highway management and maintenance work.
