2.7 t Combination Roller — Quanchai 25.6 kW China Stage IV
2.7-ton combination roller — vibratory steel drum at the front, static rubber tires at the rear. Quanchai 25.6 kW engine, China Stage IV (equivalent to EU Stage III) emission compliance. 1,200 mm working width, overall 2,610 × 1,286 × 2,795 mm, foldable ROPS folds to 1,845 mm height. Vibration frequencies 55/67 Hz dual-frequency. Combination layout delivers vibration compaction (steel drum) and surface rubbing / sealing (rubber tires) in one roller pass. Cost-optimized variant in the XD120VT family for cost-sensitive markets.

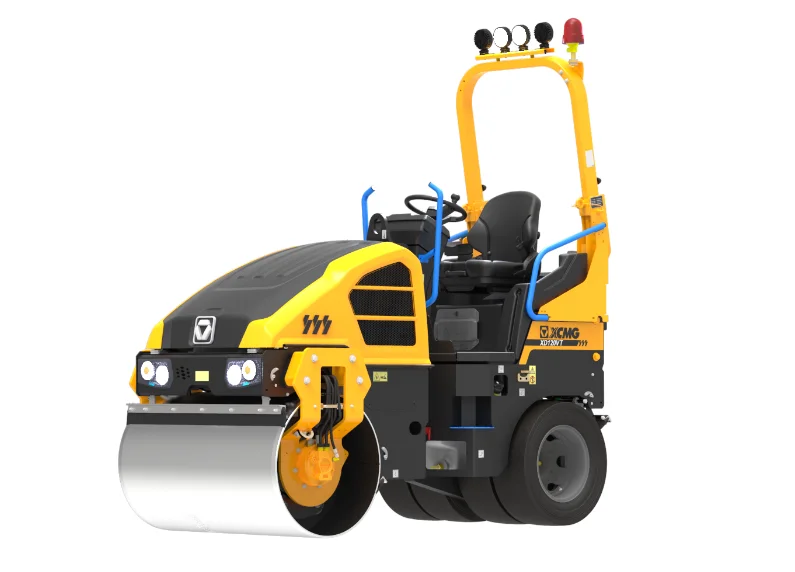

The XCMG XD120VT (Quanchai) is a 2.7-ton combination roller — vibratory steel drum at the front and static rubber tires at the rear — with Quanchai 25.6 kW engine and China Stage IV (equivalent to EU Stage III) emission compliance, the cost-optimized variant in the XD120VT family.
Operating weight 2,700 kg (50 kg heavier than the Kubota Stage III sibling at 2,650 kg), working width 1,200 mm, overall 2,610 × 1,286 × 2,795 mm, foldable ROPS folds to 1,845 mm height. Vibration frequencies 55/67 Hz dual-frequency (vs 63/67 Hz on the Kubota variant — lower-frequency option helps on heavier-lift work).
The combination layout — vibratory steel drum plus static tires — delivers both vibration compaction (steel drum) and surface rubbing / sealing (rubber tires) in a single roller pass. Sized for small-area compaction work, infrastructure reconstruction and extension projects. Quanchai engine fits markets where Quanchai parts pool and service network are established at lower acquisition cost than Kubota — relevant for cost-sensitive contractors in China domestic and South/Southeast Asian markets where China Stage IV / EU Stage III is the operative emission rule.
Five aspects of the XD120VT (Quanchai) that fit it to small-area combination roller work at lower acquisition cost: vibratory + tire combination, Quanchai 25.6 kW powertrain, 55/67 Hz lower-frequency option, application fit, and family position vs Kubota siblings.
Combination layout: vibratory steel drum at the front, static rubber tires at the rear. One roller pass delivers both vibration compaction and surface rubbing / sealing — eliminates running a separate tire roller for surface seal on small-area work.
Quanchai 25.6 kW engine. Same rated power as the Kubota XD120VT siblings, lower acquisition cost. Quanchai parts pool and service network are established in China and South/Southeast Asian markets. China Stage IV emission compliance (equivalent to EU Stage III) opens those markets where the operative emission rule is Stage III-or-lower.
Vibration frequencies 55 Hz and 67 Hz — 8 Hz lower-frequency option than the Kubota siblings (63/67 Hz). The 55 Hz low-frequency mode helps on heavier-lift work where deeper compaction depth matters; 67 Hz high-frequency for thinner-lift surface finish.
Sized for small-area compaction operations and infrastructure reconstruction and extension projects. Common applications: urban patches, sidewalk and parking-lot work, residential road resurfacing, utility-trench backfill. Combination drum delivers per-pass productivity that separate steel and tire rollers cannot match on small sites.
Cost-optimized variant in the XD120VT family. Siblings XD120VT (Stage III, Kubota) and XD120VT (Stage V, Kubota) use Kubota engines for parts-pool preferences in those markets. Choose this Quanchai variant for China-domestic and other cost-sensitive markets where Quanchai parts network is established.
| Parameter | Unit | Value |
|---|---|---|
| Engine | - | Quanchai |
| Rated power | kW | 25.6 |
| Emission | - | China Stage IV (EU Stage III) |
| Vibration frequency | Hz | 55/67 |
| Operating weight | kg | 2700 |
| Working width | mm | 1200 |
| Dimensions (L×W×H) | mm | 2610×1286×2795 |
| Foldable ROPS dimensions | mm | 2910×1286×1845 |
