90-ton, 4-axle truck crane. 48 m telescopic main boom, 65 m maximum hoist height, 2,842 kN·m load moment. Weichai WP12G375E300 main engine (276 kW), Mar-I emission per source data sheet. 8×4×4 drive and steering — 4 axles, 2 driven axles, 2 steering axles. 80 km/h max speed, 45-ton dead weight, 14.7 m overall length. 90-ton class sits between the XCT80_Y1 (80 t) and the XCT100 trio (100 t) — useful when project lift plan needs more than 80 t but doesn't justify the heavier 100-ton chassis.

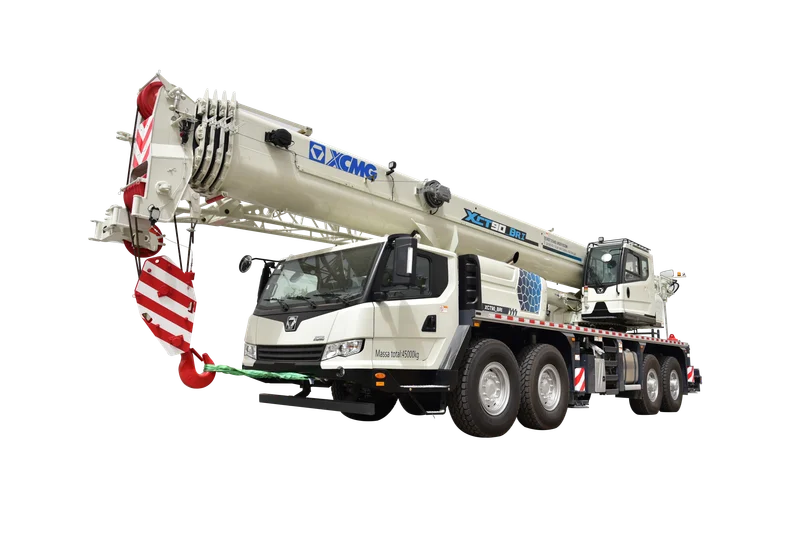

The XCMG XCT90_BRI is a 90-ton, 4-axle truck crane with a 48 m telescopic main boom, 65 m maximum hoist height, and 2,842 kN·m load moment. The drivetrain uses a Weichai WP12G375E300 main engine (276 kW) on an 8×4×4 chassis — 4 axles, 2 driven axles, 2 steering axles — with 80 km/h highway transit speed. Dead weight in travel is 45,000 kg and overall dimensions are 14,695 × 2,790 × 3,900 mm. Emission compliance is Mar-I as listed on the source data sheet.
The 90-ton tonnage class sits between the 80-ton XCT80_Y1 and the 100-ton XCT100_S / XCT100_Y / XCT100BRII trio in the XCMG truck crane lineup — useful when the project lift plan needs more than 80-ton capacity but doesn't justify stepping up to the heavier 100-ton chassis weight. The XCMG product page lists urban infrastructure, construction sites, factory construction, road and bridge construction, and equipment maintenance as the primary application contexts.
At 45-ton dead weight the XCT90_BRI is 3 to 4.6 tons lighter than the 100-ton siblings, which keeps per-axle road load and transit cost down on inter-site moves.
