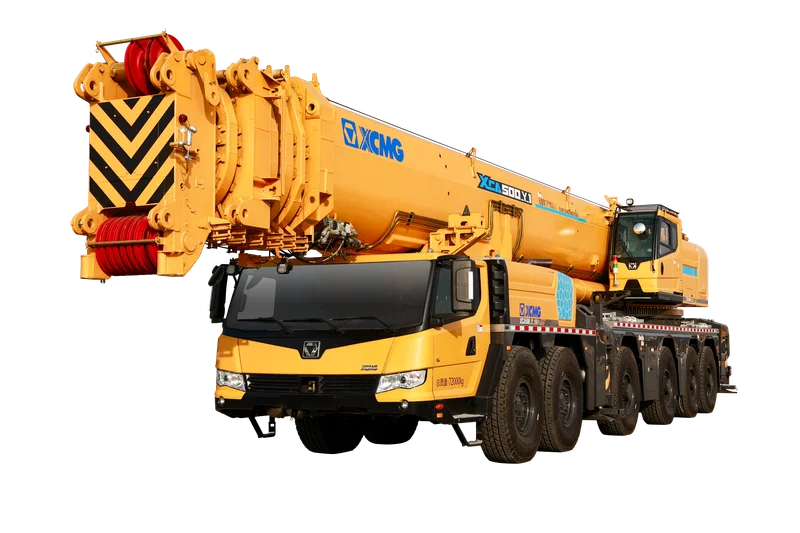

XCMG XCA500_Y_1 All Terrain Crane

6-axle 12×8×12 drive: 12 wheels total, 4 driven axles (8 driven wheels), all 6 axles steer (12 steering wheels). H-shaped outrigger geometry distributes load across a wider base than X-shaped outriggers — important for wind turbine nacelle placement, petrochemical equipment installation, and rail transit yard work where ground bearing pressure or uneven surfaces are constraints.

85 m main boom delivers 137 m maximum hoist height — 9 m higher than the 350-ton XCA350L8 (126 m hoist). Sized for 2.0 MW wind turbine maintenance lifts at typical onshore hub heights, high-rise building hoisting, large petrochemical and power plant equipment placement, and rail transit construction work. 13,800 kN·m load moment supports the heavy-component lifts in this size class.

485 kW Weichai WP15H660E61 main engine — the same engine model used in the 750-ton XCA750 flagship. Parts pool sharing across the XCMG large-tonnage ATC fleet (XCA500_Y_1, XCA750). Established Weichai service and parts network across mainland China and major export markets.

China VI emission tier — China's current strictest road vehicle emission standard, mandatory for new commercial vehicle registrations since 2021. Equivalent to Euro VI environmentally. Suited for Chinese domestic registrations and export to markets accepting China VI / Euro VI certification.

Engine parts pool shared with the 750-ton XCA750 (same Weichai WP15H660E61 main engine). Boom sections, hook blocks, outrigger pads, and accessories share core part numbers with the 450-ton XCA450_K and 750-ton XCA750. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
