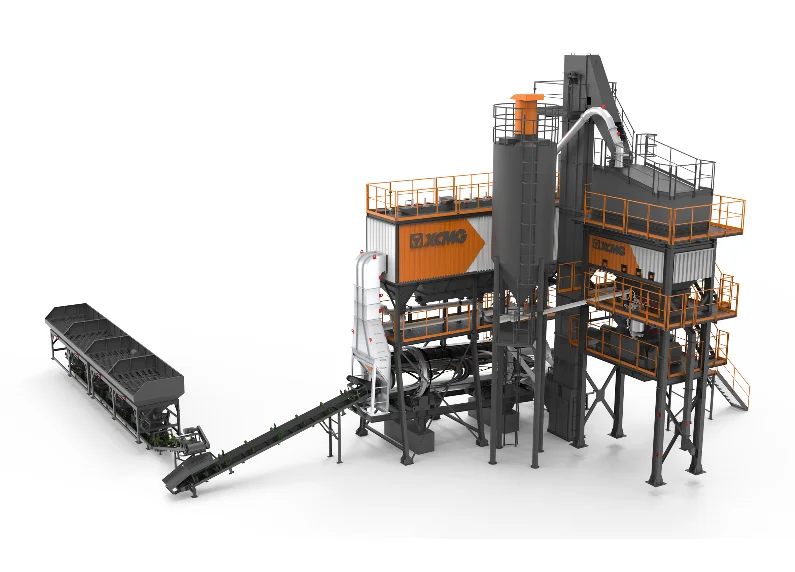

XCMG XAP125 Asphalt Mixing Plant

1,600 kg per batch nominal mixing capacity delivers 120 t/h rated productivity. 7 percent more per-batch volume than the XAP100 (1,500 kg/batch) and 20 percent higher hourly throughput. Batch format produces standard asphalt mixture and modified asphalt mixture from one plant configuration — suited to contractors running mixed mix-designs across a shift.

75 kW maximum single-unit power, up from the 55 kW peak per-unit draw of the XAP85 and XAP100. The single-unit step-up reflects the larger drum dryer and mixer motors that drive the 20 percent throughput gain. Total required operating power 285 kW, 38 kW above the XAP100 (247 kW). Plan transformer and feeder sizing for the 75 kW peak rather than the 55 kW peak of the smaller XAP plants.

750 m² minimum installation area on a 30 m × 25 m footprint — 11 percent larger than the XAP100 (675 m²) and 31 percent smaller than the XAP165 (1,085 m²). Footprint sized for project camps that have fixed plant pads in the 750 m² range and aren't constrained to the XAP100 footprint of 675 m².

Specified for classified road construction, municipal road projects, and freight yard paving where peak hourly asphalt demand sits in the 120 t/h class. Produces standard asphalt mixture and modified asphalt mixture from the same plant configuration — fits contractors with mixed project portfolios spanning classified-road, urban municipal, and yard paving work.

Stationary variant of the XAP125M mobile asphalt mixing plant — both rated at 120 t/h, 1,600 kg per batch, 285 kW. The XAP125M adds modular main tower, drum, dust removal, and cold material units that can be relocated between project camps; the XAP125 is the fixed-site configuration. Choose XAP125 for fixed-yard installations, XAP125M for relocation-driven projects. Both share mixer chambers, screens, and accessories with the wider XAP family for parts pool overlap. Genuine XCMG parts through me-equipment.com's authorized dealer channel.
