Versatile medium tracked paver. Three-section full-extending screed with two configurations: ES2360 (2.3–6.0 m basic width) or E2245T (2.25–4.5 m). 6 m maximum paving width, 300 mm maximum thickness, 600 t/h theoretical productivity, 27 m/min working speed. Cummins QSB4.5 (119 kW), EU Stage III emission. 12 t hopper, 16.8 t total weight. Electric heated screed with high-power intelligent frequency conversion generator and single tamper. Sidewalks, cycle paths, farm tracks, minor roads, classified highway maintenance.

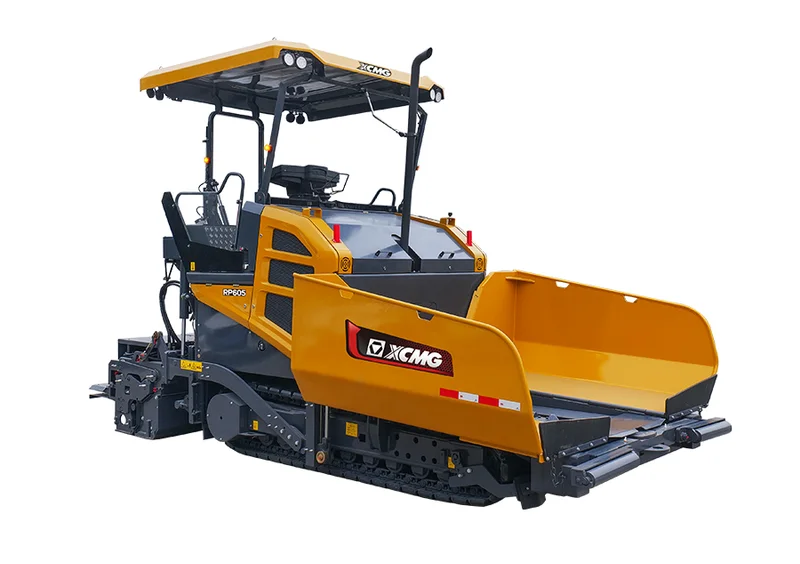

The XCMG RP605 is a medium-sized versatile tracked paver in the 6 m maximum width class, equipped with three-section full-extending screed. Two screed configurations: the ES2360 (2.3 to 6.0 m basic width) or the E2245T (2.25 to 4.5 m basic width). Maximum paving width 6.0 m, maximum paving thickness 300 mm.
Theoretical productivity 600 t/h. Working speed 27 m/min, travel speed 4 km/h. Powered by the Cummins QSB4.5 (119 kW) — 4.5-liter inline-four diesel, lighter and more compact than the QSB6.7 in the sibling RP603. EU Stage III emission. Hopper capacity 12 t. Total weight 16.8 t. Transport dimensions vary by screed: 6,620 × 2,550 × 3,280 mm (ES2360) or 6,180 × 2,550 × 3,280 mm (E2245T).
Electric heated screed with high-power intelligent frequency conversion generator and single tamper. Sidewalks, cycle paths, farm tracks, minor road work, and classified highway maintenance. Decision pick over RP505: choose RP605 when 6 m max width matters and the 16.8 t chassis is acceptable; pick RP505 when 5 m and a 12.5 t lighter chassis fit.
