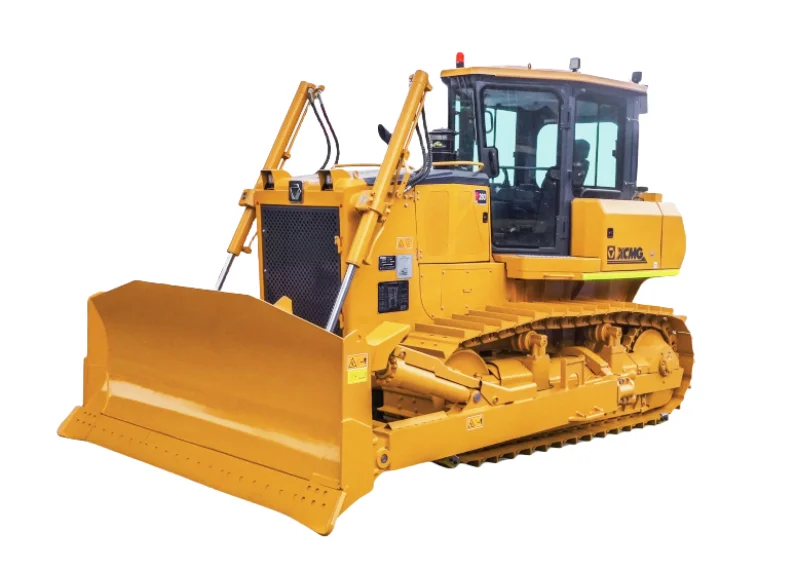

XCMG D260 (EU Stage I) Bulldozer

23.3 Ton XCMG Bulldozer — Cummins NT855 / EU Stage I

Share:
Ask AI:
NewAvailableYear 2026

23.3-ton crawler bulldozer with Cummins NT855-C280 engine — 187 kW at 1,850 rpm, EU Stage I emission. Hydrodynamic transmission with electronically controlled gear shift. Overall dimensions 5,590 × 3,725 × 3,527 mm. Minimum turning radius 4,500 mm. Ground pressure 66 kPa. Hydraulic pilot blade control, limit-load transmission control, intelligent blade control, construction data management. Stage I variant of the D260 platform — choose this version for jurisdictions accepting Stage I emission; the Stage III sibling carries the SC9DF270G3 engine for tighter-emission markets.

The XCMG D260 (EU Stage I) is a 23.3-ton hydrodynamic transmission crawler bulldozer with Cummins NT855-C280 engine — the EU Stage I variant of the D260 platform for markets where Stage I emission compliance is sufficient.

Powered by the Cummins NT855-C280 — 187 kW at 1,850 rpm. Hydrodynamic transmission with electronically controlled gear shift. Overall dimensions 5,590 × 3,725 × 3,527 mm. Minimum turning radius 4,500 mm. Ground pressure 66 kPa. Hydraulic pilot blade control and limit-load transmission control. Construction data management onboard. Intelligent control for blade lift and tilt. Built for highway, railway, airport, and water conservancy excavation, backfill, and earth-and-rock pushing. The Cummins NT855 is a long-established North American 14-liter inline-six diesel — service and parts widely available across Cummins's global network. Choose the D260 (EU Stage I) when project tonnage budget matches the 23-ton class and emission jurisdiction accepts Stage I — sibling D260 (EU Stage III) carries SC9DF270G3 engine for tighter-emission markets.

Model D260 (EU Stage I)
Chat with Patrick
XCMG D260 bulldozer 23.3 ton Cummins NT855-C280 187 kW EU Stage I
XCMG D260 (EU Stage I)
CIF Quote Available
Key Parameters

Core Specifications

Operating Weight
23.3 t
Engine Power
187 kW
Emission Standard
EU Stage I
Ground Pressure
66 kPa
Why This Machine

Product Features

Five aspects of the D260 (EU Stage I) that fit it to 23-ton class earthwork in Stage-I-emission jurisdictions: Cummins NT855 powertrain, hydrodynamic transmission, EU Stage I emission positioning, Stage III sibling comparison, and parts compatibility.

01
Powertrain

Cummins NT855-C280 engine — 187 kW EU Stage I

Powered by the Cummins NT855-C280 — 187 kW (250 hp) at 1,850 rpm, EU Stage I emission certification. Cummins NT855 is a 14-liter inline-six diesel — long-established North American platform widely used in construction, mining, and industrial equipment since the 1980s. Cummins global service and parts network is one of the broadest in the industry — relevant for export operators in remote regions.

02
Compliance

EU Stage I emission — fit for Stage-I-acceptance markets

EU Stage I emission compliance. Stage I is the original European off-road emission tier — accepted in many African, Middle Eastern, Central Asian, and Latin American markets where stricter Stage III or higher is not mandated. Choose D260 (Stage I) over the Stage III sibling when emission jurisdiction is the binding regulatory constraint and Stage I fits.

03
Drivetrain

Hydrodynamic transmission, electronic gear shift

Hydrodynamic (torque converter) transmission with electronically controlled gear shift. Limit-load control protects the powertrain under heavy push loads. Different drivetrain architecture from the hydrostatic D200H — hydrodynamic favors simpler service profile and lower parts cost; hydrostatic D200H favors finer modulation for grading work.

04
Variant Positioning

Sibling positioning vs D260 (EU Stage III)

Stage I variant of the D260 platform. Stage III sibling (D260 EU Stage III) carries the SC9DF270G3 engine — 199 kW at 2,200 rpm, 12-percent higher rated power, EU Stage III emission. Stage III sibling fits Europe, North America, and tightening-emission Asian markets. Stage I version fits emerging-market jurisdictions accepting Stage I — typically with lower fuel-quality requirements and simpler aftertreatment.

05
Parts Support

Parts compatibility across the XCMG dozer fleet

Blade edges, ripper teeth, undercarriage components, and hydraulic seals share core part numbers with other 23-ton-class XCMG crawler dozers (D260 EU Stage III, D260LGP). Cummins NT855 parts are sourced through global Cummins parts network. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.

Technical Parameters

Full Specification Sheet

ParameterUnitValue
Weight / Working device kg 23300
Minimum turning radius mm 4500
Ground pressure kPa 66
Overall dimensions (L×W×H) mm 5590×3725×3527
Engine model - Cummins NT855-C280
Rated power kW 187
Rated speed rpm 1850
Emission standard - EU Stage I
Transmission - Hydrodynamic, electronically controlled gear shift
