13.3 t Single Drum Vibratory Roller — Cummins 115 kW EU Stage V / T4F (Turkey)
13.3-ton heavy single drum vibratory roller designed for the Turkey market. Cummins 115 kW engine at 2,200 rpm rated speed, EU Stage V and EPA Tier 4 Final emission compliance. 2,130 mm working width, overall 5,990 × 2,300 × 2,990 mm. Working speed 0-11.7 km/h, gradeability 47%, vibration frequencies 30/35 Hz dual-frequency. Applicable altitude up to 3,000 m, ambient temperature -10 to +45 C. Full hydraulic dual-drive. Compaction of base layer, sub-base, and rock fill on highways, railways, airports, harbors, dams, and industrial sites.

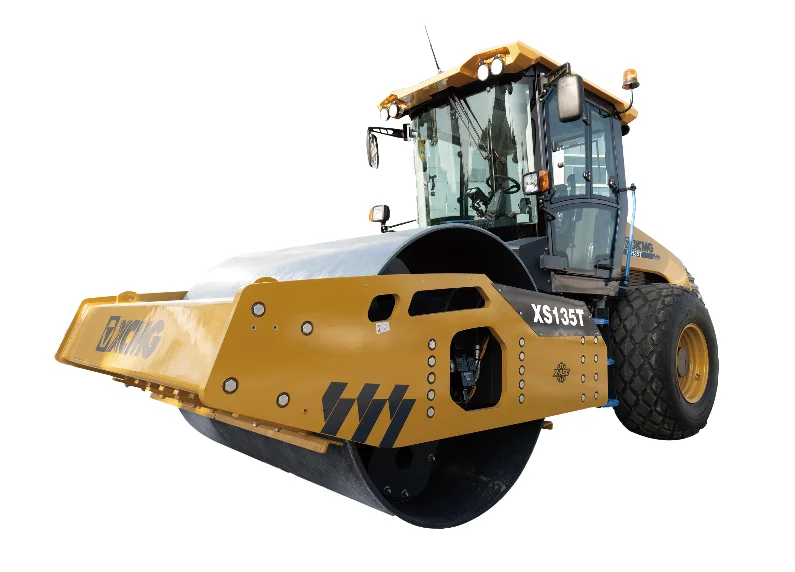

The XCMG XS135T is a 13.3-ton heavy single drum vibratory roller designed for the Turkey market — Cummins 115 kW engine at 2,200 rpm and EU Stage V / EPA Tier 4 Final emission compliance, for base layer and rock-fill compaction.
Operating weight 13,300 kg, working width 2,130 mm, overall 5,990 × 2,300 × 2,990 mm. Working speed 0-11.7 km/h, gradeability 47%, vibration frequencies 30/35 Hz dual-frequency. Applicable altitude up to 3,000 m, ambient temperature -10 to +45°C — fits Turkey and surrounding Middle East / Mediterranean market envelopes. Full hydraulic dual-drive layout.
Specifically designed for the Turkey market — EU Stage V emission compliance opens Turkey, EU, and other Stage V-adopting market access. Higher excitation force, compaction efficiency, and quality positioned for Turkey-market base layer, sub-base, and rock-fill work on highways, railways, airports, harbors, dams, and industrial sites. Variant in the XCMG XS-series single drum vibratory roller line — Turkey-specific design tweaks (working speed 0-11.7 vs 0-11.0 km/h on standard XS125 / XS135) reflect Turkish contractor work-cycle preferences.
Five aspects of the XS135T that fit it to Turkey-market base-layer and rock-fill compaction: Cummins 115 kW with Stage V / T4F, Turkey-specific working speed profile, environmental operating envelope, application fit, and family position vs XS125 / XS135 siblings.
Cummins 115 kW engine at 2,200 rpm. EU Stage V and EPA Tier 4 Final emission compliance — opens Turkey, EU, UK, US, and Canada markets where Stage V and T4F gate equipment entry. Cummins parts and service network coverage is one of the broadest in the diesel engine sector.
Working speed 0-11.7 km/h — slightly higher than the standard XS125 / XS135 line's 0-11.0 km/h, reflects Turkish contractor work-cycle preferences for marginally higher transit speed between work areas. 47% gradeability covers slope and ramp lifts.
Applicable altitude up to 3,000 m, ambient temperature -10 to +45 C. Fits Turkey, surrounding Middle East, and Mediterranean market envelopes — covers most Turkish topography without engine de-rating.
Compaction of base layer, sub-base, and rock fill on highways, railways, airports, harbors, dams, and industrial sites. 13.3 t static weight delivers the compaction force needed for heavier base-layer specifications in Turkish public-infrastructure projects.
Turkey-market variant in the XCMG XS-series single drum vibratory roller line. Sits between the 12.4 t Stage V XS125 and 13.4 t Stage V XS135 in static weight — Turkey-specific working speed and gradeability profile tweaks distinguish it from the standard XS135. Parts compatibility with siblings on chassis, engine, and drum system.
| Parameter | Unit | Value |
|---|---|---|
| Engine | - | Cummins |
| Rated power | kW | 115 |
| Rated speed | r/min | 2200 |
| Emission | - | EU Stage V / T4F |
| Operating weight | kg | 13300 |
| Working width | mm | 2130 |
| Dimensions (L×W×H) | mm | 5990×2300×2990 |
| Working speed | km/h | 0-11.7 |
| Gradeability | % | 47 |
| Vibration frequency | Hz | 30/35 |
