Heavy single drum vibratory roller: XS125 smooth drum at 12,000 kg and XS125PD welded padfoot at 12,800 kg on shared chassis. Foton 104 kW engine at 2,200 rpm rated speed, EU Stage III emission compliance. 2,130 mm working width, overall 5,990 × 2,300 × 2,990 mm. Two working-speed ranges 0-5.5 and 0-11 km/h. Gradeability 45% (smooth) / 35% (welded padfoot), vibration frequencies 30/35 Hz dual-frequency. Applicable altitude up to 3,000 m, ambient -10 to +45 C. Base layer, sub-base, and rock-fill compaction.

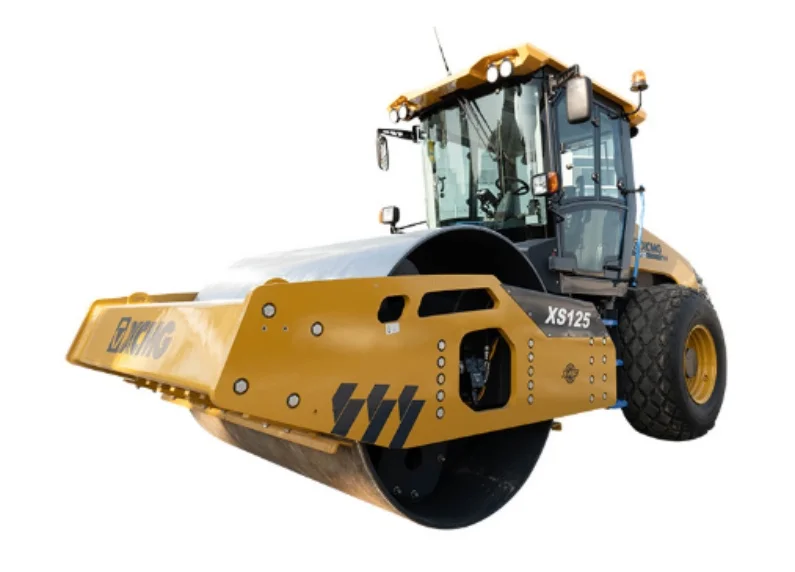

The XCMG XS125 / XS125PD (Stage III) is a heavy single drum vibratory roller — 12-ton smooth drum XS125 or 12.8-ton welded padfoot XS125PD — with Foton 104 kW engine at 2,200 rpm and EU Stage III emission compliance.
Operating weight 12,000 kg (smooth drum) or 12,800 kg (welded padfoot drum), working width 2,130 mm, overall 5,990 × 2,300 × 2,990 mm. Working speeds 0-5.5 and 0-11 km/h (two ranges). Gradeability 45% (smooth) or 35% (welded padfoot), vibration frequencies 30/35 Hz dual-frequency. Applicable altitude up to 3,000 m, ambient temperature -10 to +45°C.
Full hydraulic double-drive layout. Sized for compaction of base layer, sub-base layer, and rock fill on roads, railways, airports, harbors, dams, and industrial sites. Stage III variant in the XS125 family — Foton engine is the China-built variant of the Cummins ISF platform with broad parts network coverage in target export markets. The XS125PD welded padfoot drum handles cohesive soils and clay where kneading penetration matters; smooth-drum XS125 targets granular fill and rock work.
