Single drum vibratory roller: XS115G smooth drum (11,500 kg) and XS115PDG padfoot drum (13,000 kg) variants on shared chassis. Cummins 115 kW engine at 2,200 rpm, EU Stage V and EPA Tier 4 Final emission compliance. 2,130 mm working width, overall 5,990 × 2,300 × 3,150 mm. Working speed 0-11.0 (smooth) / 0-11.85 (padfoot) km/h, gradeability 65 / 62%, vibration frequencies 30/35 Hz dual-frequency. Double-pump driven full-hydraulic double-drive. Foundation layer, sub-foundation, and rock-fill compaction on highways, railways, airports, ports, dams, and industrial sites.

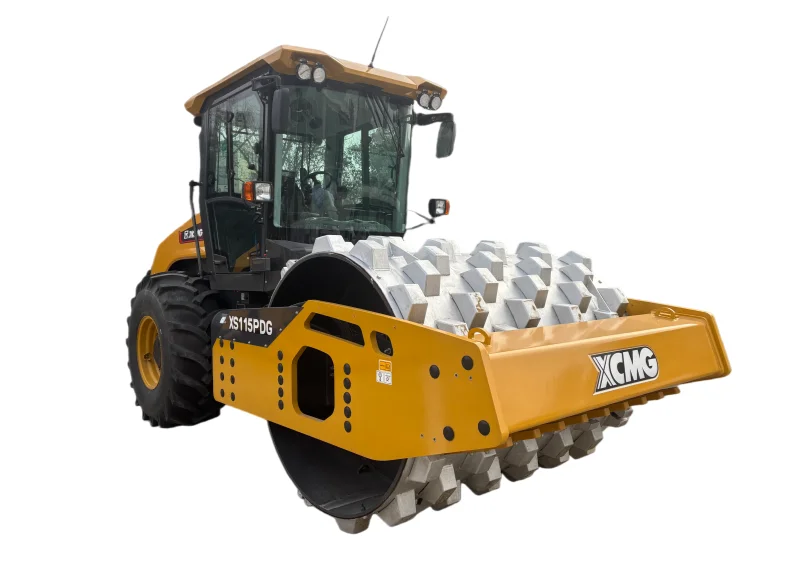

The XCMG XS115PDG is a 13-ton padfoot single drum vibratory roller (sibling smooth-drum XS115G is 11.5 t) with Cummins 115 kW engine at 2,200 rpm, EU Stage V and EPA Tier 4 Final emission compliance — sized for base layer and rock-fill compaction on foundation work.
Operating weight 13,000 kg (XS115PDG padfoot) or 11,500 kg (XS115G smooth drum), working width 2,130 mm, overall 5,990 × 2,300 × 3,150 mm. Working speed 0-11.85 km/h, gradeability 62% (padfoot) or 65% (smooth drum), vibration frequencies 30/35 Hz dual-frequency. Double-pump driven full-hydraulic double-drive layout.
Specified for compaction of foundation layer, sub-foundation layer, and rock fill on highways, railways, airports, ports, dams, and industrial construction sites. EU Stage V and EPA Tier 4 Final emission compliance open EU, UK, US, and Canada market access — relevant for contractors bidding work in regulated jurisdictions where lower-spec rollers are gated out. Padfoot drum suits cohesive soils where kneading penetration matters; smooth-drum sibling XS115G targets granular fills and rock work.
