6 t/h Emulsified Asphalt Equipment
Emulsified asphalt equipment at 6 t/h rated productivity — sits below the up-to-10-t/h XR105 sibling in the XCMG emulsified asphalt range. Pairs with emulsified asphalt cold in-plant recycling equipment or with a bitumen mixing plant. ≤5 μm emulsion bitumen fineness with proportion ≥85 percent (same quality spec as the XR105). Maximum asphalt addition ratio ≤50 percent. 30 kW required operating power vs 46 kW on the XR105, ≤15.3 m² minimum installation area. Lower throughput tier suits smaller highway maintenance contractors and depots producing emulsion for in-house jobs.

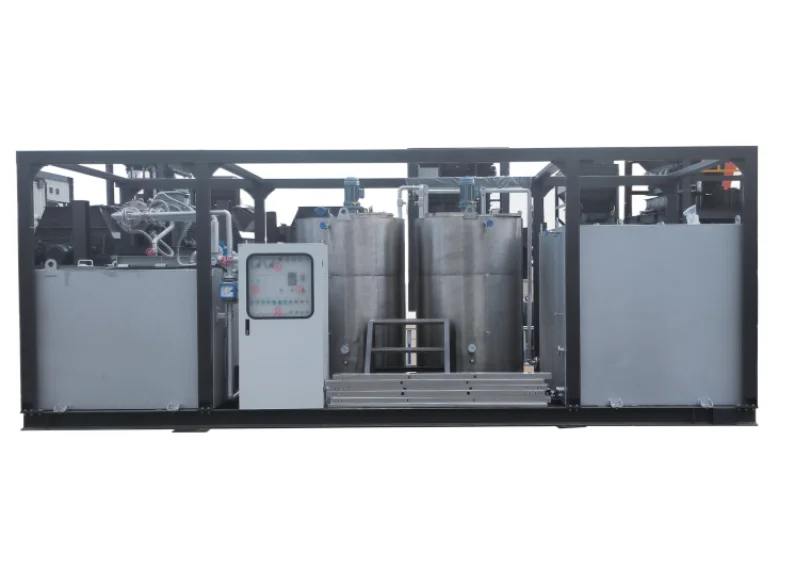

The XCMG XR65 is an emulsified asphalt equipment unit producing emulsified asphalt at 6 t/h — sits below the up-to-10-t/h XR105 sibling in the XCMG emulsified asphalt range. Pairs with emulsified asphalt cold in-plant recycling equipment or with a bitumen mixing plant.
≤5 μm emulsion bitumen fineness (proportion ≥85 percent) — same emulsion quality spec as the larger XR105, meaning XR65 delivers identical particle distribution standard at the lower throughput tier. Maximum asphalt addition ratio ≤50 percent — same wide content range as the XR105 for slurry seal, fog seal, tack coat, and CIPR mixes. 30 kW required operating power (vs 46 kW on the XR105), ≤15.3 m² minimum installation area. Lower throughput tier suits smaller highway maintenance contractors, municipal road preservation crews, and depots producing emulsion for in-house jobs rather than supplying multiple contractor crews. Same fineness and addition-ratio quality at lower capacity and lower running cost.
Four aspects of the XR65 that fit it to smaller-scale emulsified asphalt production: 6 t/h tier vs the XR105, same ≤5 μm emulsion quality at lower power draw, ≤50% addition ratio for wide spec range, and depot-scale application fit.
6 t/h rated productivity sits below the up-to-10-t/h XR105 sibling in the XCMG emulsified asphalt range. Lower-tier capacity suits smaller maintenance contractors and depot operations producing emulsion for in-house jobs rather than supplying multiple contractor crews from a single emulsion plant.
Emulsion bitumen fineness ≤5 μm with proportion ≥85 percent — identical emulsion quality spec to the larger XR105. Buyer steps down to XR65 throughput without trading off emulsion stability spec, which matters because coarse-distribution emulsions break (separate) faster and limit working time between production and pavement application.
30 kW required operating power vs 46 kW on the XR105 — 35 percent lower power draw at the 6 t/h throughput tier. ≤15.3 m² minimum installation area (same as XR105). Lower running cost matters for depots producing emulsion in smaller batches across longer time windows rather than running continuous high-throughput emulsion production.
Maximum asphalt addition ratio ≤50 percent supports a wide content range — operator dials in mix recipe for slurry seal, fog seal, tack coat, CIPR base mix, or other emulsion specs from a single unit. Same mix-range capability as the XR105 — XR65 trades throughput tier, not spec range.
| Parameter | Unit | Value |
|---|---|---|
| Rated productivity | t/h | 6 |
| Fineness of emulsion bitumen | μm | ≤5 (proportion ≥85%) |
| Maximum asphalt addition ratio | % | ≤50 |
| Required operating power | kW | 30 |
| Minimum installation area | m² | ≤15.3 |
