Recycled asphalt pavement (RAP) feedstock crushing and screening equipment. Sits upstream of a hot recycling plant such as the XRP130 or the integral XARP125 to size and clean RAP material before it enters the heating drum. 45 kW motor power. Feeder belt conveyor delivers 120 t/h at 550 mm belt width. Return belt conveyor handles 100 t/h at 550 mm belt width. Variable frequency control on the feeding hopper discharge for adjustable discharge speed. Feeding belt conveyor fitted with strong magnets to pull metal contaminants from the RAP stream before they reach the crusher.

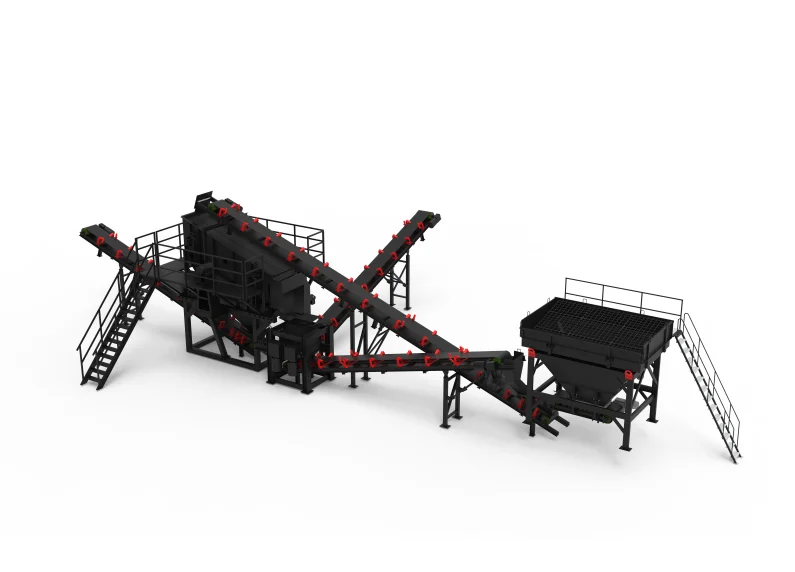

The XCMG XPSL120 is RAP (recycled asphalt pavement) feedstock crushing and screening equipment — sits upstream of a hot recycling plant (such as the XRP130 or the integral XARP125) to size and clean RAP material before it enters the heating drum.
45 kW motor power. Feeder belt conveyor delivers 120 t/h at 550 mm belt width. Return belt conveyor handles 100 t/h at 550 mm belt width. Variable frequency control on the feeding hopper discharge means adjustable discharge speed without belt slippage at low feed rates — useful when RAP material grading varies batch-to-batch. The feeding belt conveyor is fitted with strong magnets that pull metal contaminants (rebar fragments, road furniture pieces) from the RAP stream before they reach the crusher — drops crusher tooth wear and prevents downstream contamination of the heating drum and mix tank. Suited for RAP recycling operations where feedstock quality control is a binding constraint on hot-mix recycled output quality.
