26.3-ton large pneumatic tire roller. Shangchai 132 kW (177 hp class) engine, China Stage III emission compliance. Drum (tire roll) width 2,360 mm — wider than the EU Stage III XP265S's 2,075 mm. Wheelbase 4,000 mm, overall 5,100 × 2,500 × 3,200 mm. Working speed 0-16 km/h, gradeability 30%. Pneumatic tires apply the kneading action that seals asphalt mix on the surface layer. Fit for high-grade highway top course, airport apron and runway, port handling area, and dam crest paving.

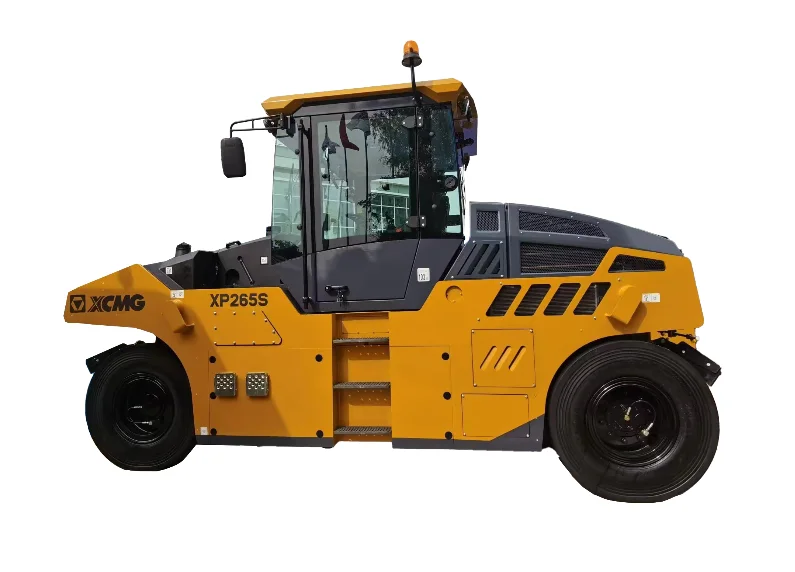

The XCMG XP265S (China Stage III) is a 26.3-ton large pneumatic tire roller with Shangchai 132 kW engine and China Stage III emission compliance — China-domestic-market variant of the XP265S pneumatic tire roller line for asphalt pavement compaction on high-grade highway, airport, port, and dam projects.
Operating weight 26,300 kg, drum (tire roll) width 2,360 mm (wider than the EU Stage III XP265S's 2,075 mm), wheelbase 4,000 mm, overall 5,100 × 2,500 × 3,200 mm. Working speed 0-16 km/h, gradeability 30%. Shangchai 132 kW (177 hp class) sits above the Cummins 104 kW used on the EU Stage III sibling — higher engine output and wider tire row but lower top working speed.
China Stage III emission compliance fits the China domestic market and other markets that accept China Stage III certification. Shangchai engine is part of the SAIC engine family with broad parts network coverage in China — relevant for domestic Chinese contractors. Pneumatic tires apply the kneading action that seals asphalt mix — fit for high-grade highway top course, airport apron, port handling area, and dam crest paving.
