Intelligent asphalt distributor on a Sinotruk ZZ1107G4515C1 4×2 chassis. 7 m³ asphalt tank, 4.5 m maximum spraying width, 0.2–3.0 kg/m² spraying rate held constant by the controller regardless of vehicle speed. Sprays emulsified, diluted, hot, and modified asphalt for prime coat, tack coat, and upper/lower seal coats on highways, all grades of roads, and municipal streets. Yuchai YC4E160-33 engine (118 kW at 2,600 rpm). 7,250 kg curb weight, 7,560 × 2,360 × 2,870 mm overall — bridges the municipal-tier XLS505A and the 6 m highway-class XLS905A within the XLS family.

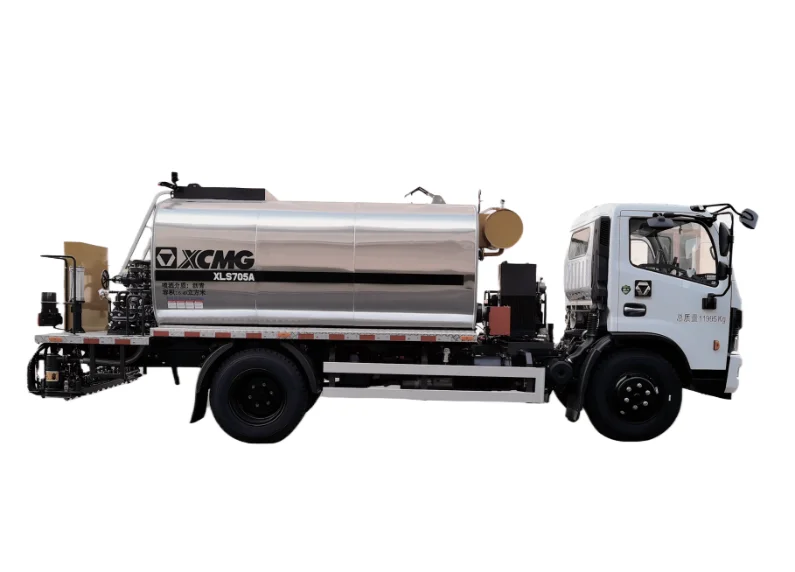

The XCMG XLS705A is a 4.5 m spraying-width asphalt distributor on a Sinotruk ZZ1107G4515C1 4×2 chassis with a 7 m³ asphalt tank. It sprays emulsified, diluted, hot, and modified asphalt at controlled rate across the 0.2–3.0 kg/m² range — the controller holds spraying density independent of truck speed so output per square meter stays within target on long passes and short pulls.
The 118 kW Yuchai YC4E160-33 engine and 7,250 kg curb weight match grade-road and infrastructure maintenance work where the project needs more daily output than the 4.2 m³ XLS505A but doesn't justify the 6 m highway-class units. Overall dimensions are 7,560 × 2,360 × 2,870 mm.
The 4.5 m spraying width covers lane plus shoulder strip on most county and provincial road geometries — a working middle of the XLS family. Smaller than the XLS905A (6 m / 8.8 m³) and the XLS1203 (6 m / 10.7 m³) for highway-class work; larger than the XLS305A and XLS505A for municipal work. Choose XLS705A when daily output target lands in the 5,000–10,000 m² range and project geometry suits a 4.5 m spray bar. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
