Compact intelligent asphalt distributor on a Sinotruk ZZ1047D3815C145 4×2 chassis. 3.8 m³ asphalt tank, 3.5 m maximum spraying width, 0.2–3.0 kg/m² spraying rate held constant by the controller regardless of vehicle speed. Sprays emulsified, diluted, hot, and modified asphalt for prime coat, tack coat, and upper/lower seal coats on highways, all grades of roads, and municipal streets. Yuchai YN4102QBZL engine (85 kW). 4,300 kg curb weight, 5,860 × 2,040 × 2,460 mm overall — entry tier of the XLS family for municipal and county-road work.

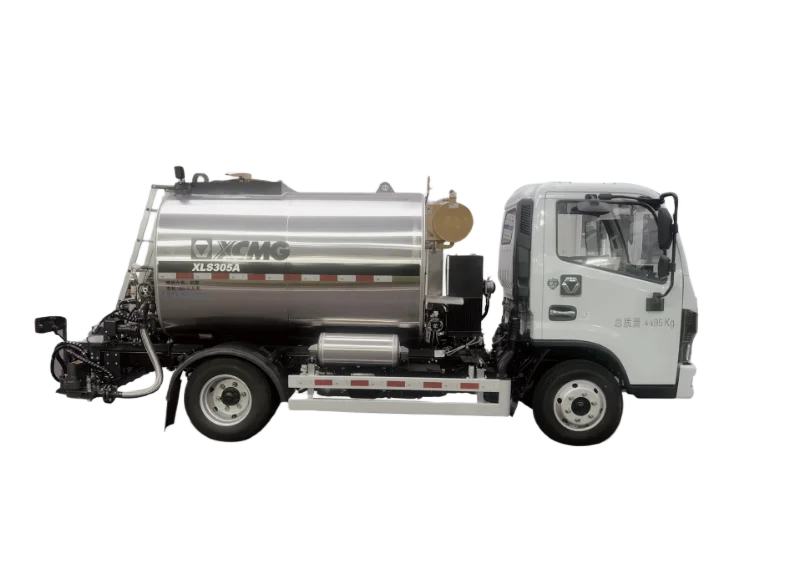

The XCMG XLS305A is a compact asphalt distributor built on a Sinotruk ZZ1047D3815C145 4×2 chassis with a 3.8 m³ asphalt tank. It sprays emulsified asphalt, diluted asphalt, hot asphalt, and modified asphalt at a controlled rate independent of vehicle speed — the controller maintains spraying amount across the 0.2–3.0 kg/m² range while the truck moves. Maximum spraying width is 3.5 m, suited to lane-width work on minor roads, urban streets, and access roads where a larger 4–6 m machine would be oversized.
The 85 kW Yuchai YN4102QBZL engine and 4,300 kg curb weight keep operating cost low for municipal contractors and county-road maintenance crews running prime coat, tack coat, and seal coat layers on a daily rotation. Overall dimensions are 5,860 × 2,040 × 2,460 mm — narrow enough for tight urban access.
The XLS305A fits the entry tier of the XLS asphalt distributor family. For wider spraying — 4 m or 4.5 m — see the XLS505A and XLS705A siblings. For 6 m wide highway-class work, the XLS905A, XLS1203, and XLS1505A run larger tanks (8.8–14.7 m³) on heavier chassis. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
