55-ton lattice-boom crawler crane. Main boom configurable 13-52 m, optional 7-16 m fixed jib. 203.5 t.m maximum load moment at boom working condition. Weichai WP7 diesel rated at 199 kW. Total vehicle mass with main hook block and 19 m boom is 46.3 tons. Single-unit max transport mass 28.6 t, max single-unit dimensions 12.04 x 3.45 x 3.36 m — under standard road permit categories in most jurisdictions.

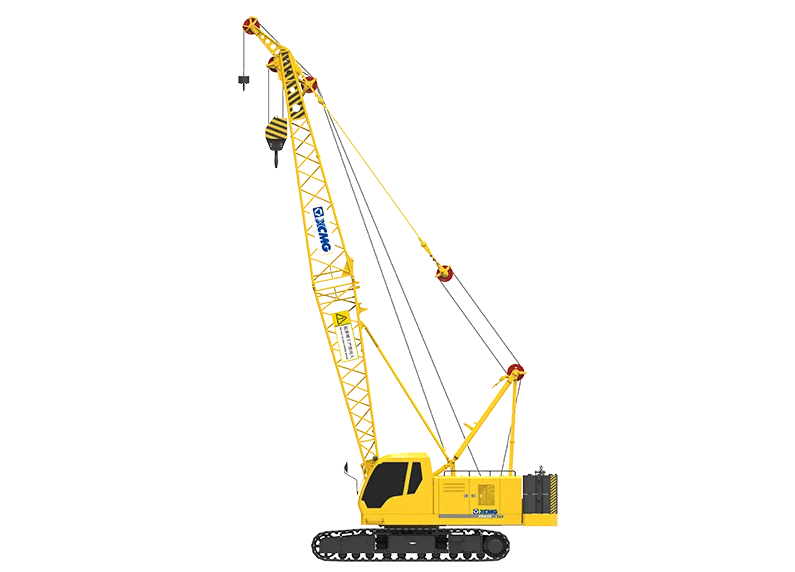

The XCMG XGC55 is a 55-ton lattice-boom crawler crane. Main boom adjusts from 13 m to 52 m, with an optional fixed jib from 7 m to 16 m. Maximum load moment at boom working condition is 203.5 t·m. Powered by a Weichai WP7 diesel rated at 199 kW.
Equipped with gantry self-pulling, free fall, one-key main and auxiliary hook block switching, engine cold start, winch monitoring, hydraulic high-pressure bypass filter, electronic level gauge, lightning protection, and travel direction-change function. Boom catwalk fitted for in-boom maintenance access.
Total vehicle mass with main hook block and 19 m boom is 46.3 tons. Single-unit maximum transport mass is 28.6 tons, with single-unit transport dimensions up to 12.04 × 3.45 × 3.36 m — within standard road permit categories in most jurisdictions.
The XGC55 sits as the entry-tier of the XCMG second-generation lattice-boom crawler line, below the XGC75 (75 t, 286 t·m) and XGC85. Same Weichai WP7 engine family, same modular boom geometry, smaller lift envelope. Suited to construction projects in the 45-55 t lift range where lattice geometry buys reach a comparable telescopic crawler cannot match.
