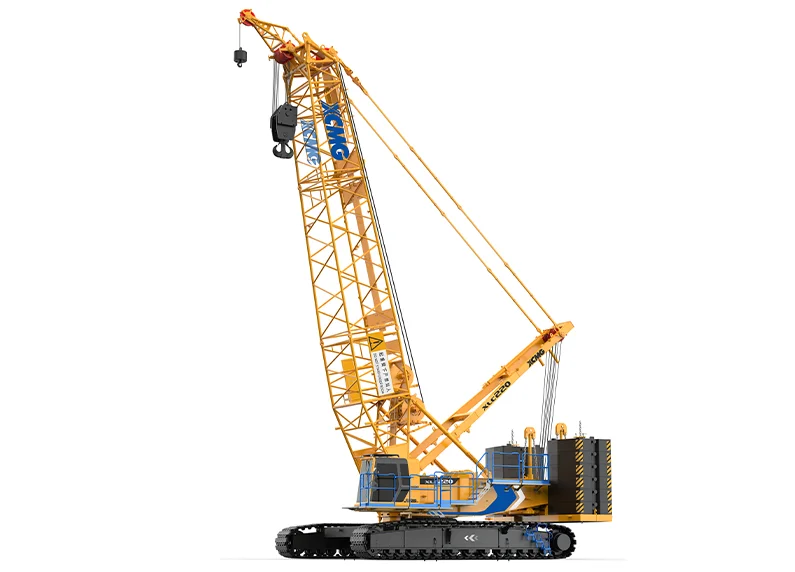

XCMG XLC220 Lattice-Boom Crawler Crane

Per XCMG specs, maximum lifting weight with tower jib configuration is 80 t; maximum lifting weight with fixed auxiliary jib is 75 t. Useful for projects that need the tower jib or fixed auxiliary jib lift profile (e.g. high-clearance lift over an obstacle, chemical column placement) where standard main boom geometry isn't fit for the job.

XLC220 is based on the upgrade of the XGC series — inherits the same boom and outrigger geometry as the previous-generation XGC line at the same 220-ton class. Direct upgrade path from XGC-line fleets in the 200-ton tonnage class.

Powered by a Weichai main engine (247 kW) — same engine power tier as the sibling 180-ton XLC180 and 260-ton XLC260, for parts pool sharing across the mid-range XLC lattice-boom line. Established Weichai service and parts network across mainland China and major export markets.

Maximum transport-state single-unit dimensions 9.0 × 3.0 × 3.3 m with max single-unit mass of 32.9 t — sized to ship on standard heavy trucks without specialized rigs. Smaller transport profile than the 260-ton XLC260 (13.2 m max single-unit length) despite being adjacent in the line.

Boom sections, hook blocks, track pads, and accessories share core part numbers with the sibling XLC180 (180 t) and XLC260 (260 t). Weichai 247 kW engine parts pool shared across the mid-range XLC line. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
