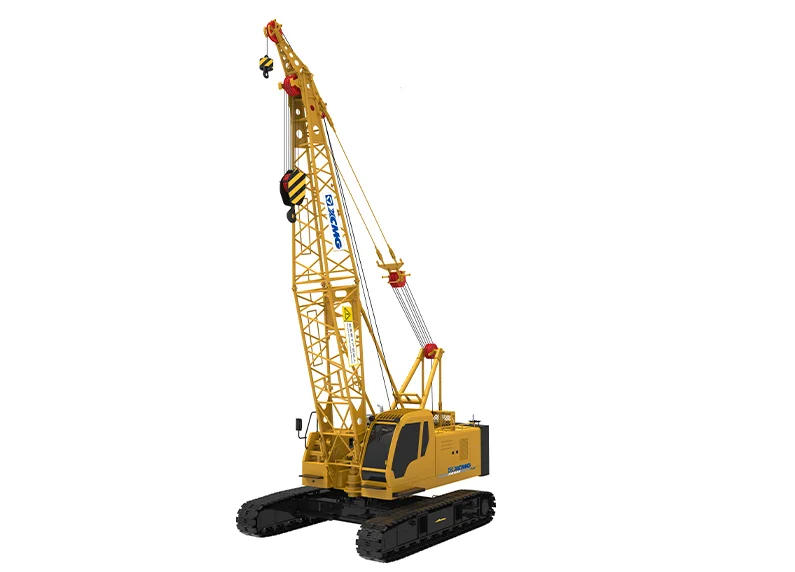

XCMG XGC45 Lattice Boom Crawler Crane

37 m maximum lattice main boom, 150 t.m maximum load moment at boom working condition. Sized for mid-tier construction lifts where 45-ton capacity is enough — building construction, bridge work, factory installation, rental-fleet duty. Smaller lift envelope than the 55-ton XGC55 (203.5 t.m) sibling but lower vehicle mass and shorter transport length offset the capacity gap for operators on weight-sensitive jobs.

Powered by the Weichai WP4.1 diesel rated at 129 kW. The WP4.1 is a four-liter inline platform — smaller and lower-power than the WP7 (199 kW) on the XGC55 and XGC75 siblings. Different engine family means different parts pool from the larger XGC models. Weichai parts and service networks cover the WP4.1 across mainland China and major export markets.

Source data lists the hoist winch maximum single-line speed at 130 m/min. The XGC55 and XGC75 source pages do not publish a single-line speed value — meaning the XGC45 is the only XCMG XGC unit with a documented winch line speed. Useful for jobsite operations planning where hoist cycle time matters: light-load pick-and-place repetition or repetitive material handling cycles.

Single-unit maximum transport mass 26.2 tons, max single-unit dimensions 10.42 x 3.45 x 3.4 m. Both transport mass and length come in below the XGC55 (28.6 t, 12.04 m) — meaningfully lower trailer-bed cost and tighter road permit category. Fits sites accessed via narrower roads, lower-rated bridges, or stricter permit jurisdictions where the 55-ton sibling would not.

Source-listed features: herringbeam self-pulling (raise boom mast without an assist crane), primary and secondary hook one-key switch, primary and secondary coil quick release, engine cold start device, winch monitoring system, lightning protection system, and electronic level gauge. Hook one-key switch and coil quick-release shorten the time spent reconfiguring between primary and secondary lifts.
