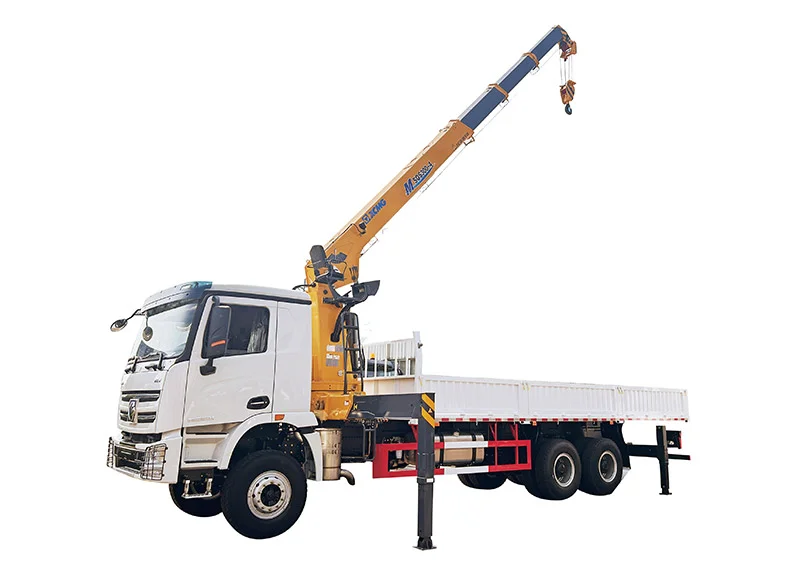

XCMG XGA325 Truck Mounted Crane

Built on the XGA1251D2WCX truck chassis: 25-ton gross vehicle weight, 12-ton kerb weight (chassis only), 6×4 drive configuration (6 wheels, 4 driven), tandem rear-axle layout with 5,850 + 1,400 mm wheelbase. 12.00R20 commercial truck tires. Standard road permit category in most jurisdictions; the crane assembly is configured per buyer specification on top of this chassis.

Shanghai SC10E400Q3B main engine — 10.4-liter displacement, 294 kW rated power. Paired with a 10JSD180TB 10-speed manual transmission for graded route work. Suited for routes with both intra-city low-speed maneuvering and inter-site highway transit segments.

Overall dimensions of 11.88 m length × 2.5 m width × 3.85 m height. The 2.5 m chassis width fits standard urban delivery lanes and warehouse loading docks. Length and wheelbase configuration handle typical construction-site approaches and yard maneuvering without escort vehicle requirements.

Euro II emission compliance — an older European emission standard accepted in markets that have not yet adopted Euro III or higher mandates. Suitable for export to regional African, Central Asian, and parts of South American markets where Euro II is the operative regulatory threshold. Lower-cost positioning compared with Euro V and Bharat Stage V variants of similar truck-mounted cranes.

Chassis, drivetrain, and hydraulic components share core part numbers with other XCMG truck and truck-mounted crane platforms — lower inventory carrying cost for fleet operators running mixed XCMG rosters across multiple vehicle classes. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
