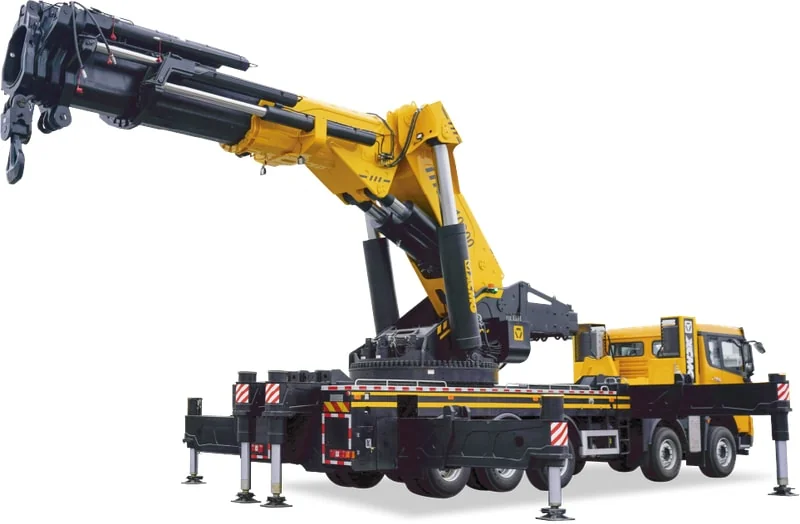

XCMG SQZ10000 Truck Mounted Crane

The telescopic boom uses 5 arm sections driven by 4 double-push cylinder pairs — each cylinder extends two arm sections simultaneously rather than one. Buffered sequential extension mechanism reduces shock loading on the structure during boom deployment. Triple high-torque slewing reducer stabilizes rotation under load, important when slewing the 45-ton counterweight at radius.

The counterweight system supports up to 45 tons of balance weight and detaches in modular sections for transit. Self-loading and self-unloading from the rotary table — no assist crane required at the jobsite to add or remove counterweight. Operating profile: transit without counterweight to stay within road permit thresholds, install full counterweight on arrival for heavy lifts, remove again for the return transit.

Weichai WP12.460E62 main engine meets National VI emission standard — China's current and strictest road vehicle emission tier (mandatory for new commercial vehicles since 2021). Equivalent to Euro VI in environmental performance. Suited for Chinese domestic market projects and export to other jurisdictions requiring the highest emission tier currently in production.

13.7 m overall length and 4 m maximum height — compact for a heavy-duty truck-mounted crane with 45-ton counterweight capability. Fits through standard industrial workshop doorways and tight turning radii on construction sites. Lightweight road-going configuration (without installed counterweight) stays within standard road permit thresholds, avoiding the permit overhead and escort vehicle requirements of larger heavy-duty cranes.

Hydraulic components, slewing assemblies, and crane accessories share core part numbers with other XCMG truck-mounted crane platforms — lower inventory carrying cost for fleet operators running mixed tonnage and emission-tier XCMG rosters. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
