8-ton double-drum vibratory roller. Kubota V3307 four-cylinder diesel rated 54.6 kW at 2,400 rpm, certified to both EU Stage V and US EPA Tier 4 Final from one configuration. 1,680 mm drum width, static linear load 233/233 N/cm, vibration frequency 48/55 Hz, excitation force 84/52 kN — high-amplitude breakdown or low-amplitude finish from the same machine. Theoretical gradeability 35%. Suited for highway maintenance, airport runway, parking lot, and large-area asphalt finishing in EU and North American emission markets.

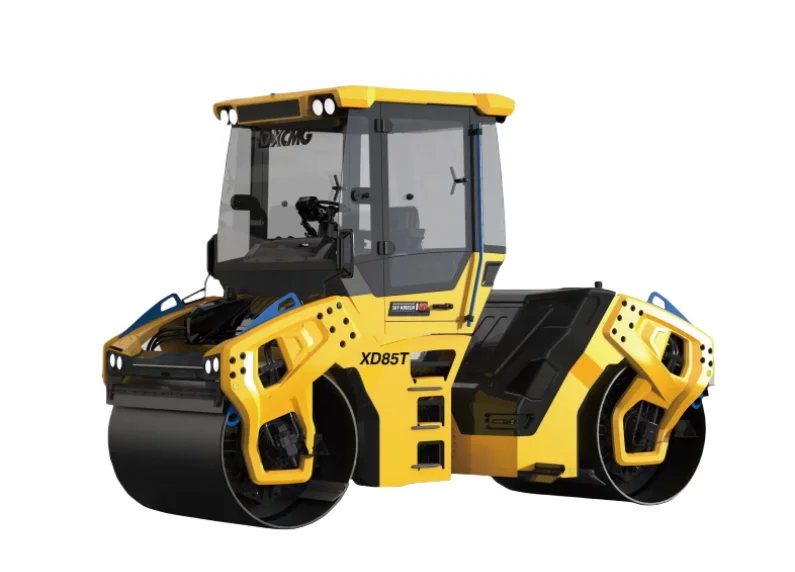

The XCMG XD85T is an 8-ton dual-drum vibratory roller — 1,680 mm drum width, Kubota V3307 54.6 kW at EU Stage V / T4F — built for asphalt top-layer compaction on highway, airport, parking-lot, and large-area paving projects in European and North American markets.
8,000 kg operating weight and 233/233 N/cm static linear load place the XD85T in the mid-tandem class — sized for highway-management and maintenance asphalt finishing rather than initial breakdown rolling (where heavier tandems or pneumatic rollers come first). 84/52 kN excitation force at 48/55 Hz vibration frequency lets the operator switch between high-amplitude breakdown and low-amplitude finish passes from the same machine. Kubota V3307 four-cylinder diesel certified to both EU Stage V and US EPA Tier 4 Final from one configuration — same machine ships into both regions. 35% theoretical gradeability handles loaded asphalt grades. Suited for asphalt-paving contractors running highway maintenance contracts, airport runway projects, and mixed-layer pavement work in EU/NA emission markets.
