2.65-ton combination roller — vibratory steel drum at the front, static rubber tires at the rear. Kubota 25.6 kW engine, EU Stage III emission compliance. 1,200 mm working width, overall 2,610 × 1,286 × 2,795 mm, foldable ROPS folds to 1,845 mm height. Vibration frequencies 63/67 Hz dual-frequency. Combination layout delivers vibration compaction (steel drum) and surface rubbing / sealing (rubber tires) in a single roller pass. Sized for small-area compaction and infrastructure reconstruction.

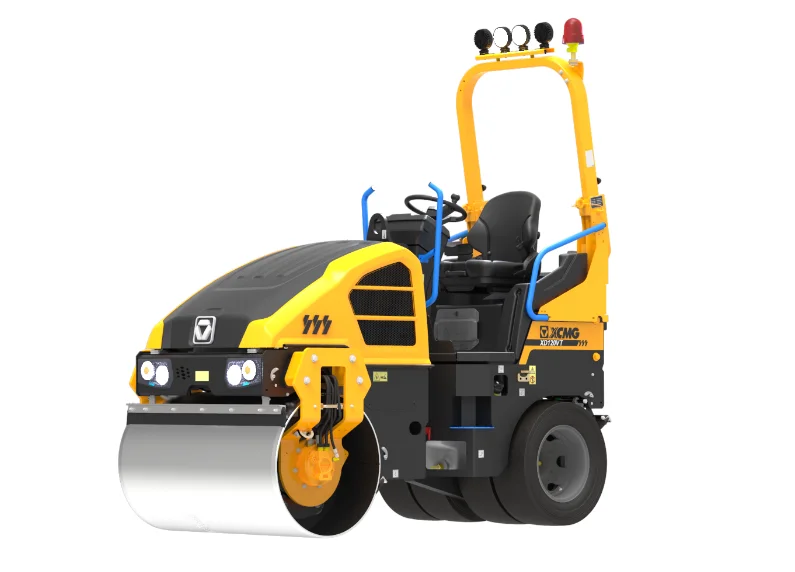

The XCMG XD120VT (Stage III) is a 2.65-ton combination roller — vibratory steel drum at the front and static rubber tires at the rear — with Kubota 25.6 kW engine and EU Stage III emission compliance. Sized for small-area compaction and infrastructure reconstruction work.
Operating weight 2,650 kg, working width 1,200 mm, overall 2,610 × 1,286 × 2,795 mm, foldable ROPS folds to 1,845 mm height. Vibration frequencies 63/67 Hz dual-frequency. The combination layout — vibratory steel drum plus static tires — delivers both vibration compaction (steel drum) and surface rubbing / sealing (rubber tires) in a single roller pass.
Sized for small-area compaction work where running a separate steel-drum roller followed by a tire roller is impractical. Common applications: infrastructure reconstruction and extension projects, urban patches, sidewalk and parking-lot work, residential road resurfacing. EU Stage III emission compliance fits Australia, Southeast Asia, Middle East, and Africa markets. Sibling XD120VT (Stage V) targets EU and US regulated markets; XD120VT (Quanchai) is the Quanchai engine variant for cost-sensitive markets.
