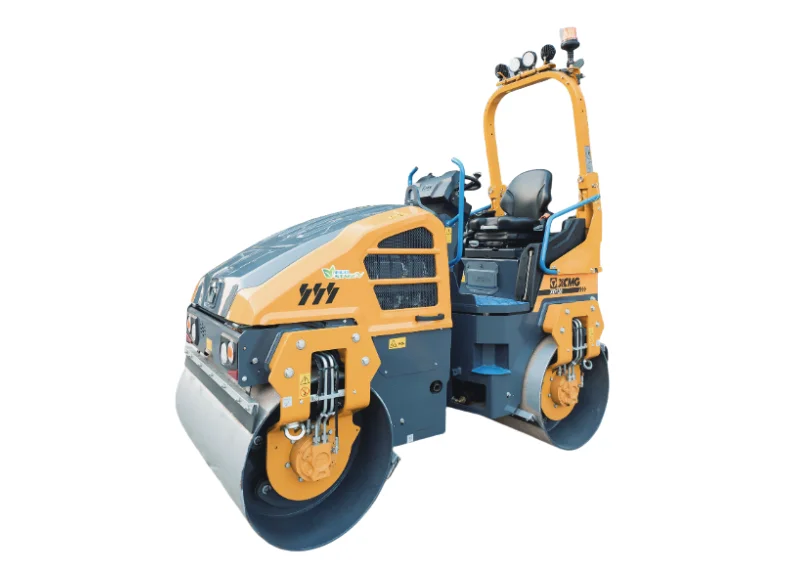

XCMG XD120 (Stage III) Light Tandem Vibratory Roller

Two engine options on the same chassis: Kubota 25.6 kW (2,850 kg, 63/67 Hz vibration) — established compact-equipment platform with global parts network; or Quanchai 28 kW (2,900 kg, 55/67 Hz vibration) — lower acquisition cost for markets where Quanchai parts pool is established. Buyer selects by market parts-network preference.

EU Stage III emission compliance — fits Australia, Southeast Asia, Middle East, and Africa markets where Stage III is the operative entry rule. Lower acquisition cost than the Stage V XD120 sibling. Choose this variant for Stage III markets where Stage V compliance is not required.

Foldable Roll-Over Protective Structure folds down: standing height 2,795 mm, folded 1,845 mm. Lets the roller pass under low overhead clearance and load onto small trucks for daily transit between maintenance sites without low-bed dispatch.

Dual-drive dual-vibration layout with separate vibration on each drum. Operator can run vibration on the lead drum only during overlap passes or split between drums for variable thickness work. Small amplitude, high frequency vibration profile sized for thin-lift asphalt surface work.

Stage III variant in the XD120 family. Sibling XD120 (Stage V) targets EU and Stage V markets at higher cost; XD120R is the seat-driving variant; XD120VT is the oscillating vibratory variant. Family-level parts and service commonality on chassis, hydraulics, and structure.
