40-ton, 3-axle truck crane. 44 m main boom, 52.3 m maximum hoist height, 1,240 kN·m load moment. Weichai WP10HG main engine (265 kW). 6×4×6 drive and steering — 3 axles, 2 driven axles, all-axle steering. 80 km/h max speed, 36-ton dead weight, 13.72 m overall length. Suited for projects where 40-ton lift class is enough and 3-axle chassis keeps per-axle road load light for daily inter-site transit.

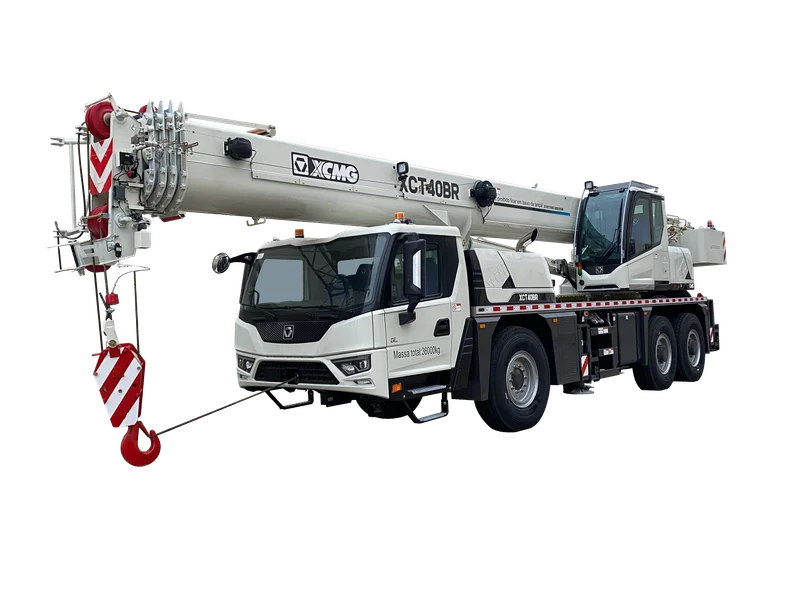

The XCMG XCT40BR is a 40-ton, 3-axle truck crane with a 44 m main boom and Weichai WP10 engine — built for cross-sector general lifting: factory construction, urban reconstruction, road transport support, ports, bridges, oilfields, and power facility installations.
The XCT40BR sits below the 60-ton XCT60_Y1 in the XCMG truck crane lineup. The 3-axle 6×4×6 chassis (vs 4+ axles on heavier truck cranes) keeps per-axle road load light, dropping permit and escort overhead for daily inter-site transit. 13.72 m overall length, 36-ton dead weight, 80 km/h highway transit speed. 52.3 m maximum hoist height and 1,240 kN·m load moment. Powered by the Weichai WP10HG main engine (265 kW), Weichai is one of China's top three commercial vehicle engine manufacturers with established service and parts networks across mainland China and export markets. Suited for projects where 40-ton lift capacity is enough but transit speed and easy permitting matter more than peak boom envelope.
