25-ton, 3-axle truck crane. 43 m main boom, 50 m maximum hoist height, 1,127 kN·m load moment. Shanghai Diesel SC9DF340Q5 main engine (251 kW), Euro V emission compliance. 6×4×2 drive and steering — 3 axles, 2 driven axles, 2 steering wheels. 90 km/h max speed, 34-ton dead weight, 13.115 m overall length, 2.55 m chassis width. Long-reach 25-ton entry point in the XCMG Euro V truck crane lineup. Suited for urban infrastructure including subway and light rail, building and factory construction, and equipment auxiliary lifting.

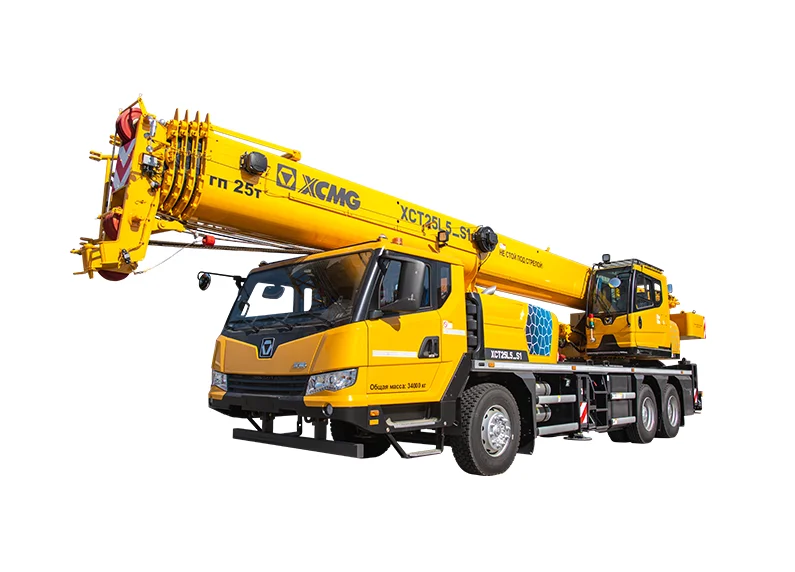

The XCMG XCT25L5_S1 is a 25-ton, 3-axle truck crane with a 43 m main boom and a Shanghai Diesel SC9DF340Q5 engine — built for urban infrastructure including subway and light rail, building and factory construction, and equipment auxiliary lifting.
The XCT25L5_S1 is the 25-ton entry point in the XCMG Euro V truck crane lineup. 3-axle 6×4×2 chassis at 2.55 m width, 13.115 m overall length, 34-ton dead weight, and 90 km/h highway transit speed. 50 m maximum hoist height and 1,127 kN·m load moment — long-reach configuration relative to the 33.5 m boom on the XCT25_Y1 and 40.5 m boom on the XCT25L5_Y siblings. SC9DF340Q5 main engine (251 kW) carries Euro V emission compliance for project work in European jurisdictions and other Euro V markets. Same engine and Euro V certification as the XCT30_S1 and XCT35_SR siblings, supporting parts pool overlap for fleet operators running the Euro V XCMG lineup across multiple capacity classes.
