100-ton, 4-axle truck crane. 50.5 m telescopic main boom, 74 m maximum hoist height, 3,450 kN·m load moment. Weichai WP10H375E50 main engine (276 kW), Country V (China V) emission compliance. 8×4×4 drive and steering — 4 axles, 2 driven axles, 2 steering axles. 80 km/h max speed, 49.6-ton dead weight, 14.99 m overall length. Mid-emission sibling to the XCT100_S (Euro V) and XCT100BRII (Mar-I) — choose XCT100_Y when project jurisdiction accepts Country V certification.

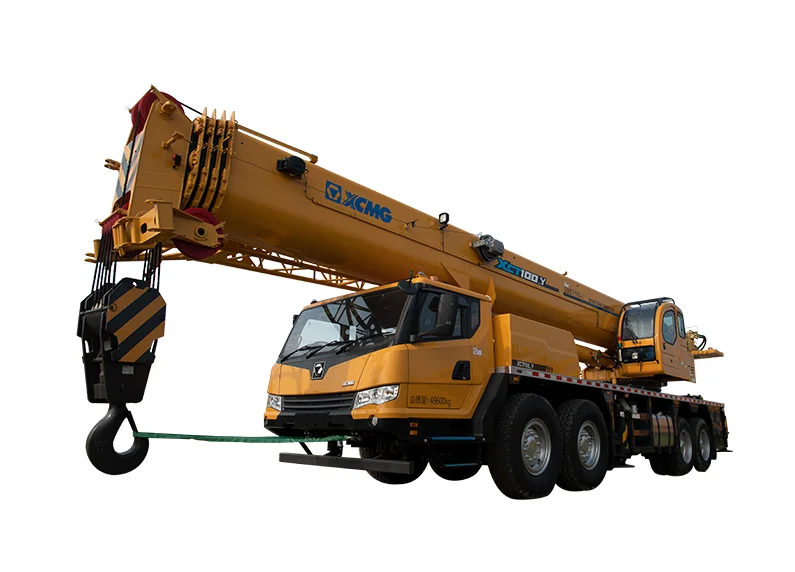

The XCMG XCT100_Y is a 100-ton, 4-axle truck crane built around a 50.5 m telescopic main boom that reaches 74 m hoist height and 3,450 kN·m load moment. The chassis runs on a Weichai WP10H375E50 main engine rated at 276 kW, with 8×4×4 drive and steering — 4 axles, 2 driven axles, 2 steering axles — and 80 km/h highway transit speed. Dead weight in travel is 49,600 kg and overall dimensions are 14,990 × 2,800 × 3,940 mm. Emission compliance is XCMG-stated Country V (China V).
Positioned as a sibling to the longer-boom XCT100_S (70 m boom, Euro V) and the compact XCT100BRII (50.5 m boom, Mar-I), the XCT100_Y sits between the two on emission profile — Country V suits Chinese-domestic and many Asian and African markets where Country V certification is accepted. The product page lists government infrastructure and road and bridge construction as the primary application contexts.
For 100-ton-class projects where the boom envelope of 50.5 m and 74 m hoist height fits the lift plan and the Country V emission profile matches the project jurisdiction, the XCT100_Y is the mid-emission choice in the XCMG 100-ton truck crane lineup.
