Chips Spreader — 3100 mm Spread / Towable Attachment
Towable chips spreader for asphalt pavement construction by layer paving method. Distributes stone chips of 3-25 mm particle size evenly onto an asphalt-base layer to build the surface course, or onto clay-bound macadam pavement. 1150 kg total weight, 3100 mm maximum spreading width, 3-22 L/m² spreading capacity at 10-20 km/h working speed. Hopper minimum inside width 2300 mm. Pairs with an asphalt distributor for chip-seal pavement work.

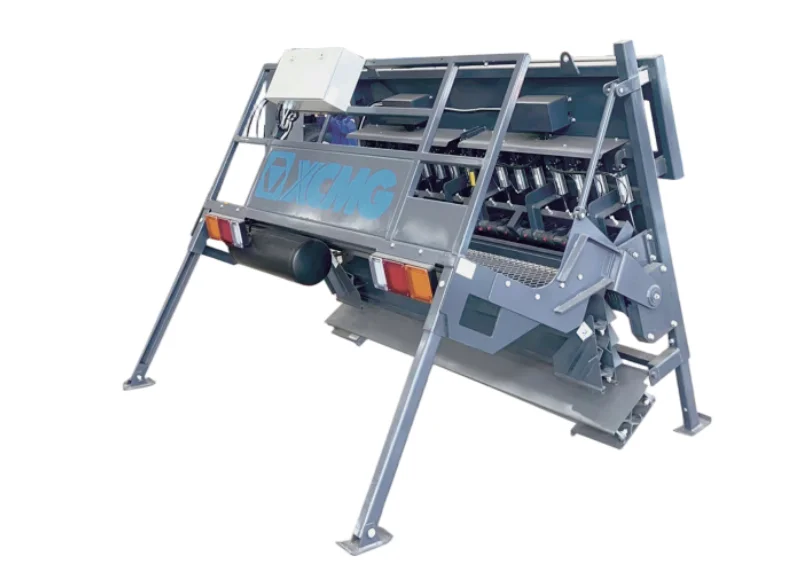

The XCMG XCS1631J is a chips spreader for asphalt pavement construction by layer paving method. Spreads stone chips of defined particle size evenly on an asphalt-base layer to form the surface course, or distributes chips for clay-bound macadam pavement work. Paired with an asphalt distributor for chip-seal projects.
Total weight 1150 kg — a towable spreader attachment hitched behind a truck or tractor rather than a self-propelled platform. Maximum spreading width 3100 mm. Aggregate particle size 3 to 25 mm. Spreading capacity 3 to 22 L/m². Working speed 10 to 20 km/h. Hopper minimum inside width 2300 mm.
Fit for chip-seal and macadam pavement contractors where the spreader operates downstream of an asphalt-binder-spraying distributor truck. Towable form-factor keeps acquisition and maintenance cost lower than a self-propelled chip spreader for operators whose chip-seal volume does not justify a dedicated truck-chassis platform.
Five aspects of the XCS1631J that fit it to chip-seal and macadam pavement work: 3100 mm spread width, broad 3-25 mm aggregate range, towable form-factor, asphalt-distributor pairing, and 3-22 L/m² spread rate.
3100 mm maximum spreading width covers a single lane (3.5 m design lane minus shoulder allowance) on most rural and provincial road geometries. Fit for one-pass chip-seal coverage of a lane width without overlap pass requirements.
Aggregate particle size range 3 to 25 mm. Covers fine chips for surface-seal wearing courses and coarser stones for macadam base treatment within the same machine — no aggregate-class change-out between chip-seal and macadam pavement jobs.
1150 kg total weight — a towable spreader hitched behind a truck or tractor rather than a self-propelled chassis. Lowers acquisition price and ongoing maintenance cost compared with a self-propelled chip spreader. Fit for contractors whose chip-seal annual volume does not justify a dedicated truck-chassis platform.
Designed to work paired with an asphalt distributor that lays binder ahead of the spreader. Standard chip-seal pavement maintenance process — distributor truck applies binder, chip spreader follows immediately to embed chips before the binder cures.
Spreading capacity 3 to 22 L/m² at working speeds of 10 to 20 km/h. Covers single-seal applications at the low end of the range and double-seal or coarse macadam at the upper end. Working speed is fast enough to keep the towing chassis at a reasonable engine speed without lugging.
| Parameter | Unit | Value |
|---|---|---|
| Total weight | kg | 1150 |
| Max. spreading width | mm | 3100 |
| Particle size | mm | 3 - 25 |
| Spreading capacity | L/m² | 3 - 22 |
| Working speed | km/h | 10 - 20 |
| Hopper min. inside width | mm | 2300 |
