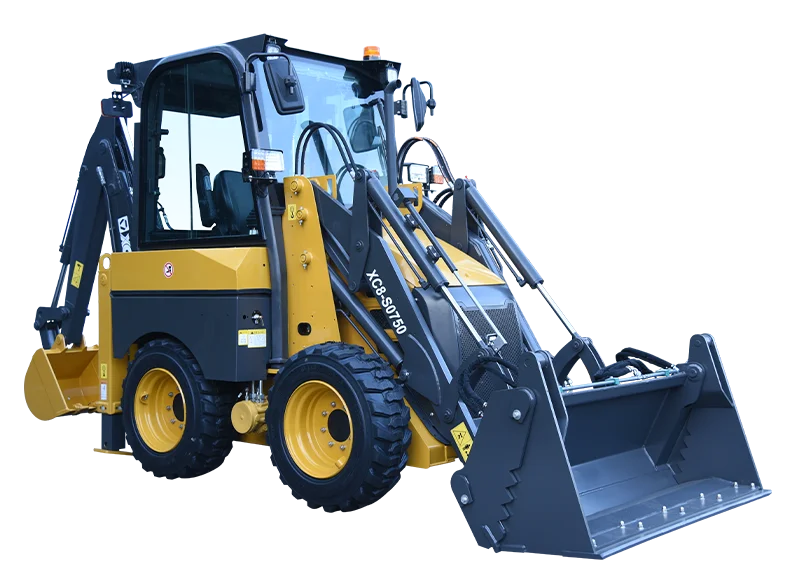

XCMG XC8-S0750 Backhoe Loader

3,800 kg operating weight — 50 percent of the XC8-C2570 (7,600 kg), 46 percent of the XC8-S2570 (8,200 kg), and 39 percent of the XC8-S3570 (9,750 kg). 0.36 m³ front loader bucket is 36 percent of the 1.0 m³ bucket on the 2.5-ton class. 700 kg rated load on the loader vs 2,500 kg on the XC8-C2570 / XC8-S2570 and 3,500 kg on the XC8-S3570. Sized for jobs where the 2.5-ton or 3.5-ton machines are overspecified.

1,612 mm width fits through standard 1.8 m and 2.0 m residential, garden, retail, and warehouse gates without disassembly. 3,760 mm overall length vs 6,199 mm for the XC8-S2570 (39 percent shorter) and 7,340 mm for the XC8-C2570 (49 percent shorter). 2,300 mm overall height fits under standard overhead clearances and into covered job sites where the 3,400-3,700 mm height of the larger XC8 machines does not clear.

3,800 kg operating weight sits within the towing capacity of standard heavy-duty pickup trucks with a tandem-axle trailer — eliminates the need for a flatbed truck for inter-site relocation. Lower trailer requirement, lower per-trip transport cost, faster job-site rotation for rental fleets serving residential and small commercial contractors.

45 kW rated engine power (36.8 kW operating) is roughly 61 percent of the 73.5 kW on the XC8-C2570, XC8-S2570, and XC8-S3570 — scaled to the smaller bucket, lighter chassis, and lower hydraulic flow requirements of the compact class. Lower fuel burn per shift than running the larger XC8 machines on jobs that do not need their capacity. 2,755 mm maximum digging depth — sized for light utility burial, landscaping trenches, and shallow foundation work.

Hydraulic components, control systems, and select chassis parts share part numbers with the rest of the XCMG XC8 backhoe loader series (XC8-C2570, XC8-S2570, XC8-S3570) — lower inventory carrying cost for rental fleets running mixed XC8-series rosters that span compact-to-mid sizes. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
