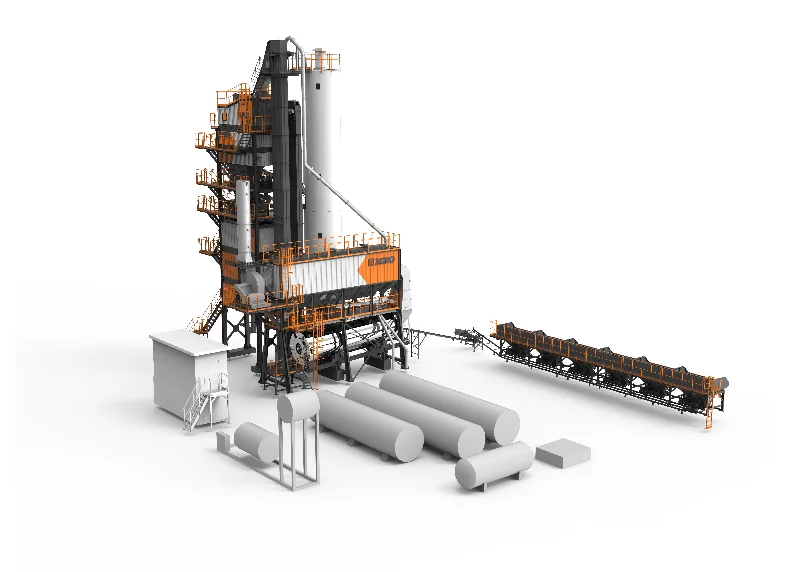

XCMG XAP165 Asphalt Mixing Plant

2,200 kg per batch nominal mixing capacity delivers 160 t/h rated productivity. 38 percent more per-batch volume than the XAP125 (1,600 kg/batch) and 33 percent higher hourly throughput. Per-batch volume matched to dual-truck loading patterns — single batch fills a 2 t paving truck plus reserve, useful for high-cadence highway paving operations.

110 kW maximum single-unit power, 47 percent above the XAP125 (75 kW). Reflects the larger drum dryer and mixer motors needed at the 160 t/h class. Total 436 kW operating power, 53 percent above the XAP125 (285 kW). Plan transformer and feeder sizing for the 110 kW peak — typical 500 kVA transformer sizing for the plant, with continuous load near 480 kVA equivalent.

1,085 m² minimum installation area on a 35 m × 31 m footprint — 45 percent larger than the XAP125 (750 m²). The footprint expansion supports the larger drum and storage silos needed for the 160 t/h class. Useful as a benchmark when comparing to mobile alternatives: 1,085 m² stationary footprint is comparable to a 1,131 m² XAP125M mobile setup, but with 33 percent more throughput.

Specified for classified road construction, municipal road projects, and freight yard paving where peak hourly asphalt demand sits in the 160 t/h class. Produces standard asphalt mixture and modified asphalt mixture from the same plant configuration. Suited to highway segment paving, large municipal infrastructure projects, and mid-size freight yard work where 160 t/h is the binding rate.

Matches the 140-160 t/h production class of the XRP165 Asphalt Plant-Mix Hot Recycling Equipment — same throughput tier, different mixing focus. Choose XAP165 for projects producing virgin asphalt without recycled aggregate handling; choose XRP165 when the project specifies recycled material processing. Mixer chambers, screens, and accessories share core part numbers across the XAP family — lower inventory carrying cost for operators running mixed-capacity XCMG asphalt fleets. Genuine XCMG parts through me-equipment.com's authorized dealer channel.
