100 t/h stationary batch-type asphalt mixing plant from XCMG. 1,500 kg per batch nominal mixing capacity, 247 kW required operating power, 55 kW maximum single-unit power. 675 m² (25 m × 27 m) minimum installation area — matches the XAP85 footprint despite 25 percent higher throughput. Produces standard asphalt mixture and modified asphalt mixture from the same plant configuration. Specified for classified roads, municipal road projects, and freight yard paving. Sits between the XAP85 (80 t/h) and XAP125 (120 t/h) in the XCMG XAP stationary lineup — choose XAP100 when 100 t/h is the binding throughput requirement.

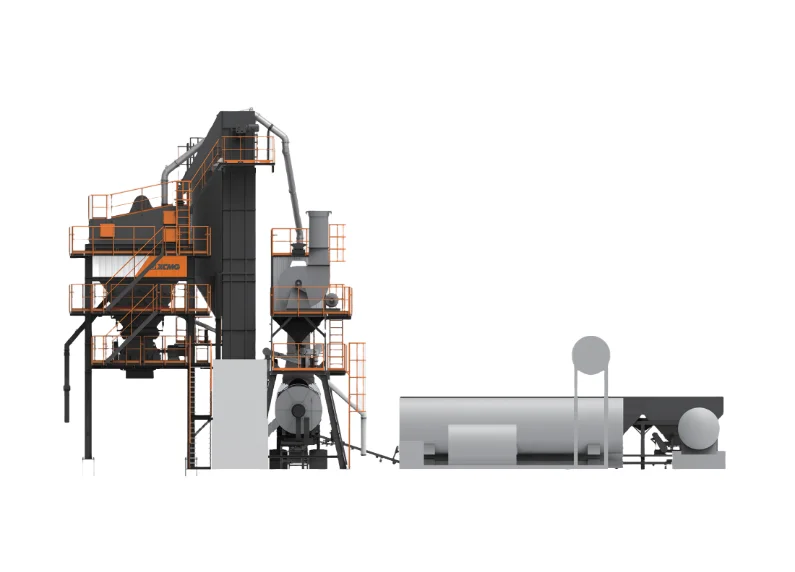

The XCMG XAP100 is a stationary batch-type asphalt mixing plant rated at 100 t/h with a 1,500 kg per batch nominal mixing capacity — sized for classified roads, municipal road work, and freight yard paving where 100 t/h hourly output is the binding throughput constraint.
Required operating power is 247 kW with a 55 kW maximum single-unit draw — only 7 kW above the entry XAP85 (240 kW), so the upgrade to 100 t/h class does not push transformer or feeder sizing materially. Minimum installation area is 675 m² (25 m × 27 m), matching the XAP85 footprint despite the 25 percent higher throughput. The plant produces standard and modified asphalt mixture from one configuration. Sits between the XAP85 (80 t/h) and XAP125 (120 t/h, 1,600 kg/batch) in the XCMG XAP stationary lineup — choose XAP100 when 100 t/h productivity is needed and 1,500 kg per batch matches average paving truck volume.
