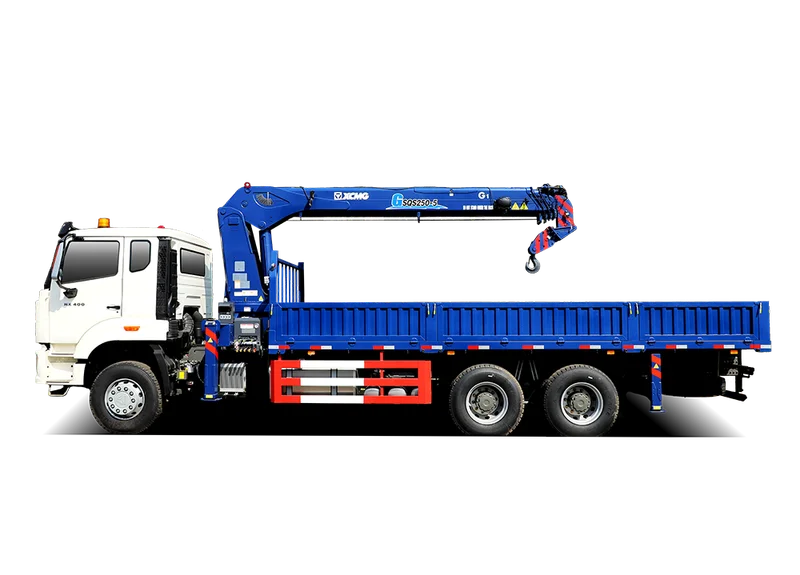

XCMG GSQS250-5 Truck Mounted Crane

Polygon large-arc ultra-high-strength-steel boom structure with synchronous telescopic extension across boom sections — stronger lifting capacity at the same boom envelope vs rectangular-profile booms, faster expansion speed during deployment, and higher reliability under sustained load cycles. The polygonal cross-section distributes bending and torsional stresses more evenly across the boom wall.

Turntable-mounted high-seat operator station with four-position control — different control forms to match operator preference and lift type. Elevated seat position gives a better working view of the load from above the lift. Standard work light and a remote engine shut-off from the high seat avoid frequent climb-down for hoisting and unloading.

Automatic hook-retracting device saves pre-travel setup time — the crane enters driving state in the shortest time and the lifting device is protected from damage caused by hook swing in transit, improving driving safety. Overwinding protection alarm device alerts the operator in time to stop continuing to collect the hook, preventing wire rope breakage from personal and property safety incidents.

Double-pump confluence raises winch speed and working efficiency vs single-pump truck-mounted cranes in the same GVW class. Fluorine seals replace standard seals for high-temperature resistance — reduces leakage risk under sustained hot-climate operation. Euro V compliance via MC11.40-50 main engine (294 kW). 90 km/h max driving speed on a 16,260 kg GVW chassis. Overall dimensions 10950×2500×3850 mm.

Chassis, hydraulic components, and crane accessories share core part numbers with other XCMG truck-mounted crane platforms (sibling GSQS350-5, SQS400P, SQZ2600, SQZ10000) — lower inventory carrying cost for fleet operators running mixed XCMG rosters across multiple truck-mounted crane classes. XCMG L-HM(CY) wide-temperature hydraulic oil works across winter and summer, eliminating seasonal oil changes. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
