Large Compact Tracked Paver — 9 m Width / Two Screed Options
Large compact tracked paver. Two screed options: E2550ATV (2.5–5 m basic / 8 m max) or E3060ATV (3.0–6 m basic / 9 m max). 450 mm maximum paving thickness, 900 t/h theoretical productivity, 25 m/min working speed. Cummins QSB6.7 (158 kW), EU Stage III emission. 15 t hopper, 22.5–25.2 t total weight, 6,982 × 2,550/3,000 × 3,080 mm transport dimensions. Full hydraulic drive, microcomputer control, left/right independent drive, ultrasonic material level sensing, electronic automatic leveling, vibratory compaction, variable-frequency electric heating.

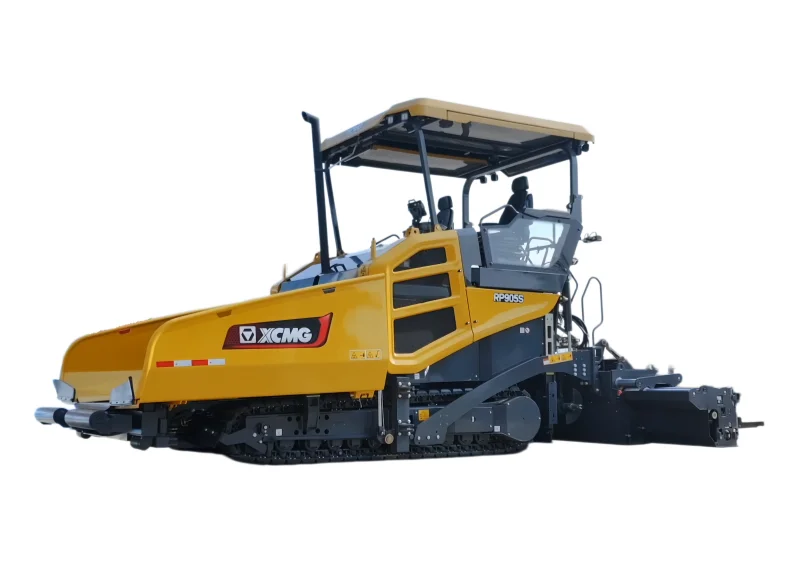

The XCMG RP905S is a large compact tracked paver in the 9 m maximum width class with two screed configurations: E2550ATV (2.5 to 5 m basic / 8 m max) or E3060ATV (3.0 to 6 m basic / 9 m max). Maximum paving thickness 450 mm. Theoretical productivity 900 t/h. Working speed 25 m/min, travel speed 4 km/h.
Powered by the Cummins QSB6.7 (158 kW). EU Stage III emission. Hopper capacity 15 t. Total weight 22.5 to 24.8 t (E2550ATV) or 22.8 to 25.2 t (E3060ATV). Transport dimensions 6,982 × 2,550 × 3,080 mm (E2550ATV) or 6,982 × 3,000 × 3,080 mm (E3060ATV).
Standard intelligent control suite: full hydraulic drive, microcomputer control, left and right independent drive, ultrasonic material level sensing control, electronic automatic leveling, vibratory compaction, variable-frequency electric heating. Decision pick over the RP905 sibling: both share the QSB6.7 158 kW engine and the same 450 mm thickness — picks differ on hopper config and small chassis-weight ranges. Decision pick over RP905i: choose RP905S for EU Stage III markets; pick RP905i when Stage V emission compliance binds.
Five aspects of the RP905S that fit it to 9 m large compact tracked paver work: two screed configurations, Cummins QSB6.7 158 kW powertrain, variable-frequency electric heating, EU Stage III compliance, and parts compatibility across the XCMG paver fleet.
E2550ATV: 2.5–5 m basic paving width, 8 m maximum, 2,550 mm transport width, 22.5–24.8 t total weight. E3060ATV: 3.0–6 m basic, 9 m maximum, 3,000 mm transport width, 22.8–25.2 t. Pick E2550ATV for 8 m work where 2.55 m trailer width matters; pick E3060ATV when single-pass 9 m coverage binds.
Powered by Cummins QSB6.7 (158 kW). Same engine platform as the RP903 (164 kW) and the lower-output RP803/805S (142 kW) — direct parts pool overlap across the XCMG mid-to-large paver class. EU Stage III emission certification — distinct from the RP905i (Stage V, B6.7 173 kW). Pick RP905S when project emission limits Stage III is enough.
Variable-frequency electric heating adapts heater load to ambient temperature and screed thermal demand. Reduces fuel consumption on long shift days and supports cold-climate paving where heating duty cycle drives the energy bill. Vibratory compaction at the paver pass delivers pre-compacted layer density for downstream roller load reduction.
Full hydraulic drive with left and right independent track drive — independent speed control for curved sections and crown work. Ultrasonic material level sensing maintains consistent feed depth on the auger, supporting uniform pre-compaction density across the 9 m screed. Electronic automatic leveling handles uneven base layers without manual screed re-tuning.
Screed extensions, tamper components, hopper plates, and track shoes share core part numbers with other XCMG tracked pavers in the RP-series (RP505, RP603, RP605, RP803, RP805S, RP903, RP905, RP905i, RP953) — lower inventory carrying cost for fleet operators running mixed-width XCMG rosters. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Basic paving width | m | 2.5–5 (E2550ATV) / 3.0–6 (E3060ATV) |
| Max. paving width | m | 8.0 (E2550ATV) / 9.0 (E3060ATV) |
| Max. paving thickness | mm | 450 |
| Working speed | m/min | 25 |
| Travel speed | km/h | 4 |
| Theoretical productivity | t/h | 900 |
| Hopper capacity | t | 15 |
| Diesel engine power | kW | 158 |
| Engine manufacturer | - | Cummins |
| Engine model | - | QSB6.7 |
| Emission standard | - | EU Stage III |
| Total weight | t | 22.5–24.8 (E2550ATV) / 22.8–25.2 (E3060ATV) |
| Transportation dimensions | mm | 6982×2550×3080 (E2550ATV) / 6982×3000×3080 (E3060ATV) |
