5-series large compact tracked paver. Two screed options: E2550ATV (2.5–5 m basic / 8 m max) or E3060ATV (3.0–6 m basic / 9 m max). 450 mm maximum paving thickness, 900 t/h theoretical productivity, 25 m/min working speed. Cummins QSB6.7 (158 kW), EU Stage III emission. 15 t hopper, 22.5–24.5 t total weight, 6,982 × 2,550/3,000 × 3,080 mm transport dimensions. Full hydraulic drive, microcomputer control, independent left/right drive, ultrasonic material level sensing, electronic automatic leveling, vibration compaction.

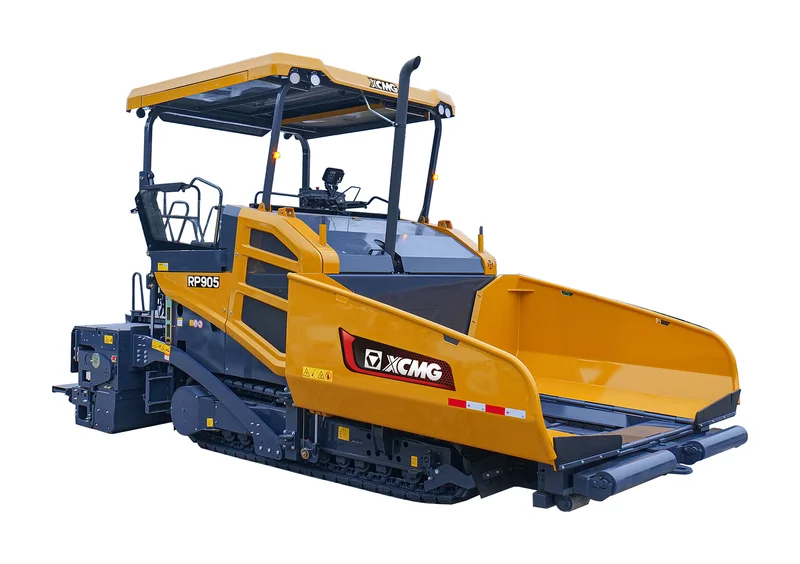

The XCMG RP905 is a key model in the 5-series large paver lineup. Two screed options: E2550ATV (8 m max width) or E3060ATV (9 m max width). Maximum paving thickness 450 mm. Theoretical productivity 900 t/h. Working speed 25 m/min, travel speed 4 km/h.
Powered by the Cummins QSB6.7 (158 kW). EU Stage III emission. Hopper capacity 15 t. Total weight 22.5 to 24.0 t (E2550ATV) or 23 to 24.5 t (E3060ATV). Transport dimensions 6,982 × 2,550 × 3,080 mm (E2550ATV) or 6,982 × 3,000 × 3,080 mm (E3060ATV).
Full hydraulic drive, microcomputer control, independent left and right drive, ultrasonic material level sensing, electronic automatic leveling, vibration compaction. Specified for paving surface and base materials on highways of various grades.
The RP905 and RP905S sit on the same 5-series chassis and share the 158 kW Cummins QSB6.7 / EU Stage III platform — pick on hopper and chassis-weight specifics and on regional availability. For Stage V markets, the RP905i (B6.7, 173 kW) is the right pick instead.
