Compact tracked asphalt paver with 7.5 m max paving width, 119 kW Cummins QSB4.5 engine, and 600 t/h productivity. Basic width 2.5-5.0 m extending to 7.5 m, 300 mm max thickness, 21 m/min working speed, 3 km/h travel speed, 13 t hopper. Transport dimensions 6,300 × 2,550 × 3,850 mm, 18.7-20.5 t total weight. EU Stage III. Variant of the 7.5 m RP705 platform with screed configuration tuned for highway surface course finish — full hydraulic drive, independent left/right track drive, material level sensor, electronic auto-leveling, tamper compaction, variable frequency screed heating.

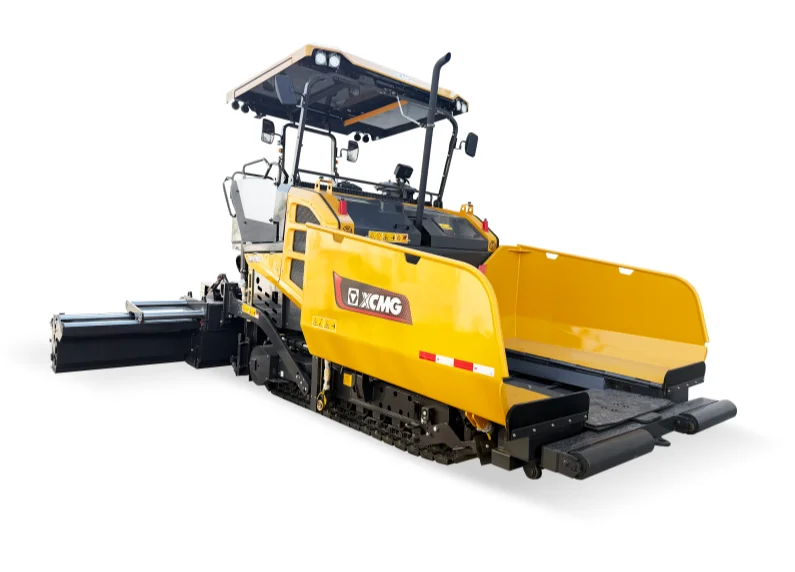

The XCMG RP705C is a compact tracked asphalt paver with 7.5 m maximum paving width and 119 kW Cummins QSB4.5 engine — sized for surface course paving on classified highways and grade roads.
Basic paving width 2.5-5.0 m extending to 7.5 m maximum. 300 mm max paving thickness, 600 t/h productivity. Working speed 21 m/min, travel speed 3 km/h, 13 t hopper. Transportation dimensions 6,300 × 2,550 × 3,850 mm — 18 percent taller transport profile than the RP705 sibling (3,850 mm vs 2,930 mm) because of screed configuration. Total weight 18.7-20.5 t. Power comes from a Cummins QSB4.5 diesel rated 119 kW, EU Stage III emission. Variant of the 7.5 m RP705 platform sharing the engine and chassis but with screed configuration tuned for highway surface course finish — full hydraulic drive, independent left/right track drive, material level sensor control, electronic auto-leveling, tamper compaction, variable frequency screed heating. Three RP705 variants for project fit: RP705 (lower transport height), RP705C (this unit, highway surface configuration), RP705i (Stage V emission). Backed by me-equipment.com's authorized XCMG dealer parts and service.
