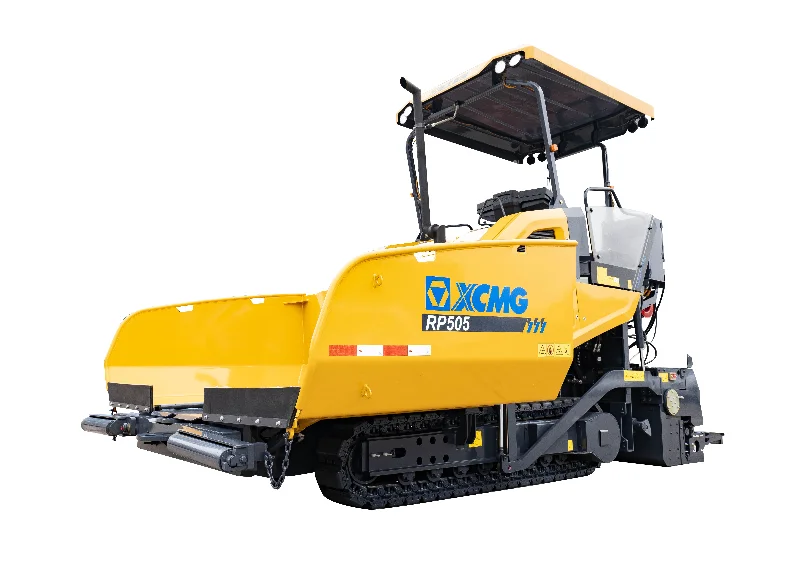

XCMG RP505 Asphalt Paver

Basic paving width 1.8–3.4 m, expanding to 5.0 m with 250 bolt-on screed extensions. 12.5 t total weight, 5,864 × 1,925 × 3,106 mm transport dimensions — under 2 m wide, fits standard low-bed trailers without permit overhead for routine inter-site transit. Binding decision factor for buyers picking RP505 over the 6 m RP605 or 7 m RP603: when site footprint and trailer access drive the equipment choice rather than peak paving width.

Reinforced E340T hydraulic extending screed with electric heating function and single tamper unit. Screed heating supports cold-start work without manual gas torch warm-up. 280 mm maximum paving thickness — fits routine asphalt overlay and base course work on minor roads, rural highway sections, and urban maintenance projects.

Powered by Cummins QSF3.8 (104 kW). Cummins has established parts and service networks across export markets including Southeast Asia, Africa, the Middle East, and Latin America — lower parts logistics risk for buyers operating outside mainland China. QSF3.8 is a 3.8-liter inline-four diesel in the established Cummins QSF platform, shared with many off-highway equipment models for parts pool overlap.

EU Stage III emission certification. Suited for markets accepting Stage III equipment — most of Southeast Asia, Africa, the Middle East, Latin America, and EU export markets without Stage V mandates. Distinct emission profile from the RP905i sibling (EU Stage V) for buyers with specific certification requirements.

Screed extensions, tamper components, hopper plates, and track shoes share core part numbers with other XCMG tracked pavers in the RP-series (RP603, RP605, RP803, RP805S, RP903, RP905, RP905S, RP953) — lower inventory carrying cost for fleet operators running mixed-width XCMG rosters. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
