1,660 kg remote-control trench compactor. Kubota engine at EU Stage V / T4F. Vertical vibration with two-stage amplitude — tune force from pipe-bedding soft passes to upper-backfill full force. Articulated frame, 1,000 mm wheelbase, inside/outside turning radius 1,440/2,290 mm for tight municipal utility trenches. Gradeability 55%/45%. Operator works the machine over radio from above the trench — removes trench-collapse exposure risk. 1,910 × 610 × 1,300 mm fits a single-axle utility trailer.

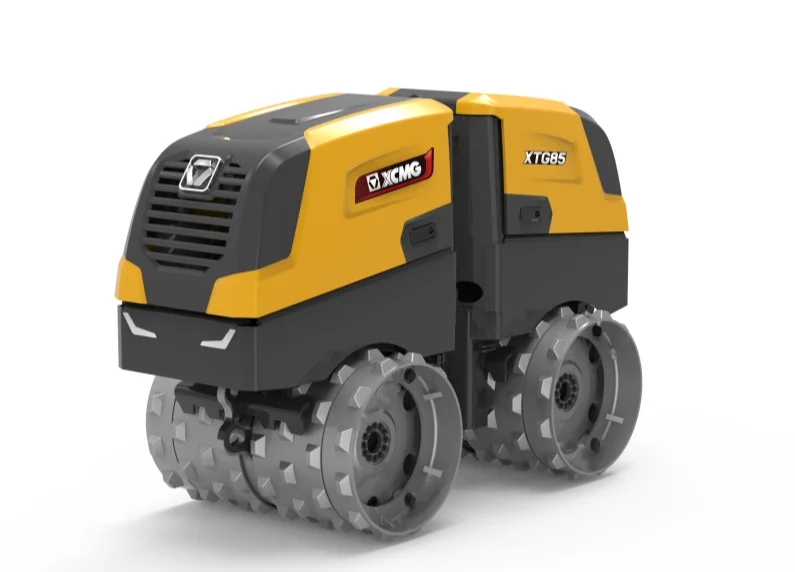

The XCMG XTG85 is a 1,660 kg remote-controlled trench compactor — built for ditch, sewer, and pipe-trench backfilling work where ride-on rollers cannot enter and the operator must stand clear of an open excavation.
The XTG85 runs a Kubota engine to EU Stage V / T4F emission, satisfying both European and North American non-road diesel limits without aftermarket re-rating. Articulated frame with 1,000 mm wheelbase and 1,440/2,290 mm inside/outside minimum turning radius lets it work tight municipal utility trenches; theoretical gradeability of 55%/45% handles steep trench profiles in two stages. Two-stage amplitude and vertical vibration tune compaction force to the lift depth — soft passes near pipe bedding, full force on upper backfill. Operator stands on the surface and works the machine over radio, removing trench-collapse exposure risk. 1,910 × 610 × 1,300 mm fits a single-axle utility trailer. Operating speed 1.2/2.8 km/h, minimum ground clearance 225 mm. Suited for sewer contractors, municipal pipe replacement, and small-bore utility installation.
