Top of the XCMG crawler scissor lift lineup. 15.8 m maximum working height, 13.8 m platform height, 360 kg lift capacity. 40 percent grade ability, 2 km/h travel speed in low position. 300×110×54 mm rubber track shoes — the largest shoe pitch in the lineup — distribute the 5,150 kg total weight. 204.5 mm minimum ground clearance for tracked travel over rougher terrain. Variable wheelbase 1,540/2,975 mm extending undercarriage widens the footprint for stability at full extension. 3.6 m minimum outside turning radius.

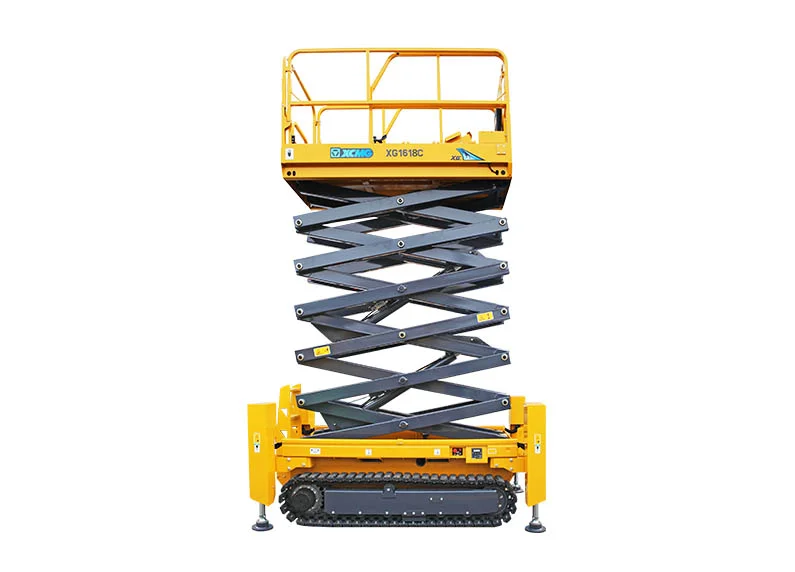

The XCMG XG1618C is the top of the XCMG crawler scissor lift lineup — 15.8 m maximum working height, 13.8 m platform height, and 360 kg lift capacity. Four-to-five story working envelope on a tracked base for outdoor and rough-ground access.
Track travel on 300×110×54 mm rubber shoes — the largest shoe pitch in the lineup — handles loose surface, sand, grass, and graded ground while distributing the 5,150 kg total weight. 40 percent grade ability for steep approaches. 204.5 mm minimum ground clearance for tracked travel over rougher terrain. Variable wheelbase 1,540/2,975 mm: extending undercarriage widens the footprint for stability at full 15.8 m extension where lateral safe-working-load envelope binds.
2 km/h travel speed in low position. 3.6 m minimum outside turning radius. Unilateral and in-situ steering on the tracks. 360 kg capacity carries two operators plus heavier tool kits or installation materials. Sits above the XG1416C (13.8 m) in the XCMG crawler scissor lift lineup — choose XG1618C when the project envelope exceeds 14 m and the 5,150 kg total weight remains within transport and ground-pressure constraints.
