Tracked (crawler) scissor lift. 13.8 m maximum working height, 11.8 m platform height, 320 kg lift capacity. 40 percent grade ability, 2 km/h travel speed in low position. 230×90×53 mm rubber track shoes and 180.5 mm minimum ground clearance handle loose surface, sand, grass, and graded outdoor ground. Variable wheelbase 1,400/2,615 mm — extending undercarriage widens the footprint for stability at full extension. 4,050 kg total weight, 3.3 m minimum outside turning radius. Unilateral and in-situ steering on the tracks.

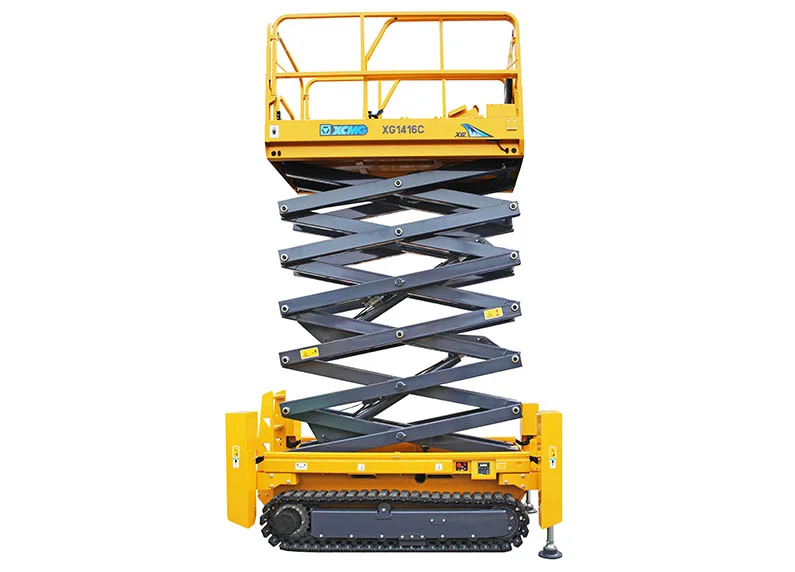

The XCMG XG1416C is a tracked scissor lift with 13.8 m maximum working height, 11.8 m platform height, and 320 kg lift capacity — three-to-four story working envelope on a crawler base built for outdoor and rough-ground access.
Track-driven travel on 230×90×53 mm rubber shoes handles loose surface, sand, grass, and graded ground. 40 percent grade ability — the highest in the lineup alongside the XG1618C — for sloped landscaping and infrastructure work on steep approaches. 4,050 kg total weight. 180.5 mm minimum ground clearance — more than double the XG0810C (86 mm) for tracked travel over rougher ground. Variable wheelbase 1,400/2,615 mm (extending undercarriage) widens the footprint for stability at full extension.
2 km/h travel speed in low position. 3.3 m minimum outside turning radius. Unilateral and in-situ steering on the tracks. The 320 kg capacity carries two operators plus tools, opening multi-person aerial work at mid-height — facade construction, infrastructure inspection, exterior lighting installation, and outdoor maintenance. Sits between the XG0810C (8.8 m) and the XG1618C (15.8 m) in the XCMG crawler scissor lift lineup.
