2.65 t Light Tandem Vibratory Roller — Kubota 24.6 kW EU Stage V / T4F
2.65-ton light tandem vibratory roller. Kubota 24.6 kW engine, EU Stage V and EPA Tier 4 Final emission compliance. 1,200 mm working width, overall 2,610 × 1,286 × 2,795 mm, foldable ROPS folds to 1,845 mm height. Vibration frequencies 63/67 Hz dual-frequency. Sized for soil and asphalt pavement compaction in narrow areas — sidewalks, parking lots, residential roads. Also fits thin stabilized-soil layering. Suited to asphalt surface laminating work in municipal maintenance and high-speed pipe maintenance.

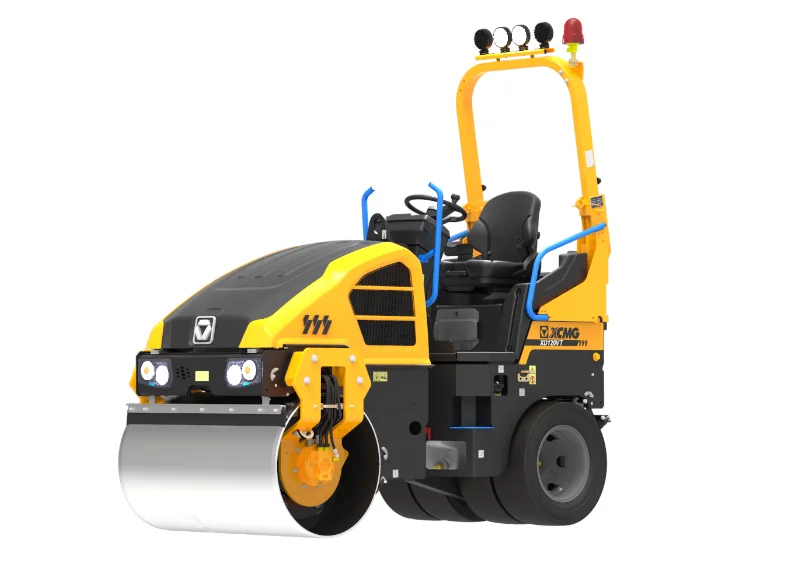

The XCMG XD120VT (Stage V) is a 2.65-ton light tandem vibratory-oscillation roller with Kubota 24.6 kW engine and EU Stage V / EPA Tier 4 Final emission compliance — sized for narrow-area compaction work on sidewalks, parking lots, residential roads, and thin stabilized soil layers.
Operating weight 2,650 kg, working width 1,200 mm, overall 2,610 × 1,286 × 2,795 mm, foldable ROPS folds to 1,845 mm height. Vibration frequencies 63/67 Hz dual-frequency. The -VT suffix marks the vibration variant — sized for soil and asphalt pavement compaction in narrow areas where the larger machines cannot fit or maneuver.
EU Stage V and EPA Tier 4 Final emission compliance opens EU, UK, US, and Canada markets. Sized for asphalt surface laminating in municipal maintenance and high-speed pipe maintenance work — common applications include sidewalk reconstruction, parking-lot patches, residential road resurfacing, and thin-layer stabilized soil work that the bigger XD120R or XD135T-class machines are oversized for. Lower-cost regulated-market option vs the XD135T-class machines on small-area work.
Five aspects of the XD120VT (Stage V) that fit it to narrow-area asphalt and soil compaction in Stage V markets: Kubota Stage V / T4F powertrain, narrow-area working envelope, foldable ROPS, sector application fit, and family position.
Kubota 24.6 kW engine. EU Stage V and EPA Tier 4 Final emission compliance — fits EU, UK, US, and Canada markets where Stage V and T4F gate equipment entry. Kubota compact-equipment engine sits in a global parts and service network.
1,200 mm working width on 2,650 kg operating weight. Sized for compaction of soil and asphalt pavement in narrow areas where the larger XD135T or XD120R class cannot fit or maneuver: sidewalks, parking lots, residential roads, narrow utility-trench backfill.
Foldable Roll-Over Protective Structure folds down: standing height 2,795 mm, folded 1,845 mm. Lets the roller pass under low overhead clearance and load onto small trucks for daily transit between maintenance sites.
Specified for asphalt surface laminating in municipal maintenance and high-speed pipe maintenance work. Common applications: sidewalk reconstruction, parking-lot patches, residential road resurfacing, thin-layer stabilized-soil work. 63/67 Hz dual-frequency vibration profile sized for thin-lift asphalt surface work.
Stage V variant. Sibling XD120VT (Stage III) targets Stage III markets at lower cost; XD120VT (Quanchai) is the Quanchai engine variant for cost-sensitive markets. Same chassis, hydraulics, and vibration system across emission tiers.
| Parameter | Unit | Value |
|---|---|---|
| Engine | - | Kubota |
| Rated power | kW | 24.6 |
| Emission | - | EU Stage V / T4F |
| Vibration frequency | Hz | 63/67 |
| Operating weight | kg | 2650 |
| Working width | mm | 1200 |
| Dimensions (L×W×H) | mm | 2610×1286×2795 |
| Foldable ROPS dimensions | mm | 2910×1286×1845 |
