3.5 Ton Compact Wheel Loader — 92 kW
3.5-ton class compact wheel loader. 2.1 m³ bucket, 3500 kg rated load, 10300 kg operating weight, 92 kW rated power. 7.25 m × 2.48 m × 3.10 m envelope on 2.9 m wheelbase. Lower 3.10 m overall height than the XC938 (3.22 m) and XC938-EV (3.22 m) siblings — useful where overhead clearance matters. Same bucket capacity and rated load as the XC938 series but on a tighter chassis. Light construction, rental fleet, urban infrastructure, and small-scale aggregate work.

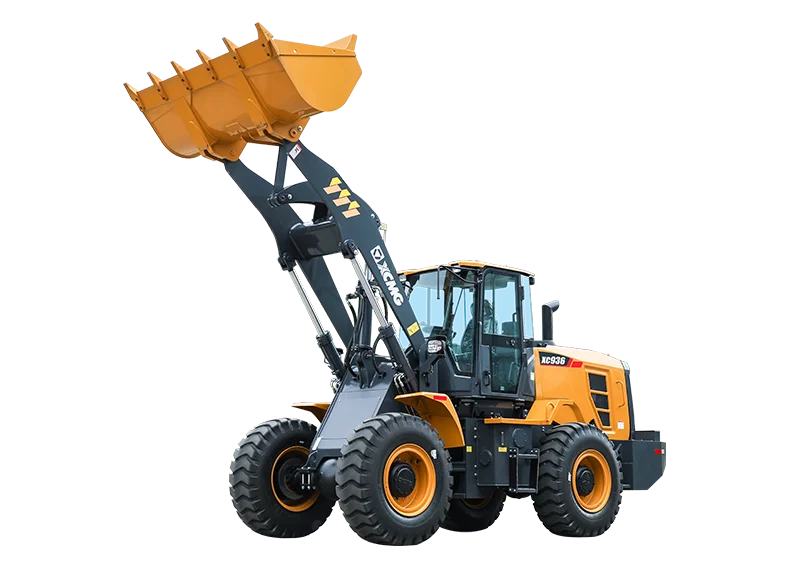

The XCMG XC936 is a 3.5-ton class compact wheel loader with 2.1 m³ bucket, 3500 kg rated load, and 10300 kg operating weight — sized for light construction, rental fleet, urban infrastructure, and small-scale aggregate work.
92 kW rated power on a 2.9 m wheelbase. 7.25 m × 2.48 m × 3.10 m envelope — lower 3.10 m overall height than the 3.41 m XC938 sibling and 3.22 m XC938-EV. Same bucket and rated load as the XC938 series but on a tighter chassis with 100 mm shorter overall length and 100-200 mm lower height. Sits in the XCMG XC9 series as a compact alternative to the XC938 — useful where overhead clearance or transport height matters. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
Five aspects of the XC936 that fit it to 3.5-ton class compact diesel loading work: lower overall height, same XC938 bucket capacity, light construction fit, rental fleet sizing, and parts compatibility across the XCMG fleet.
3.10 m overall height vs 3.22 m on the XC938 / XC938-EV siblings. Useful for overhead-clearance constrained work: low-ceiling industrial facilities, tunnel access, bridge underpass transit, and indoor construction. 7.25 m overall length vs 7.35 m XC938 — slightly more compact envelope.
Same 2.1 m³ bucket and 3500 kg rated load as the XC938 series (XC938U, XC938E, XC938-EV) but on a tighter chassis. Production work output identical to XC938 in 3.5-ton class but with smaller overall envelope.
92 kW rated power, 10300 kg operating weight. Same power as the XC938 base model (1.8 m³ / 92 kW / 10.4 t). Power-to-weight tuned for efficient fuel use on mid-cycle loading at light construction, rental fleet, and urban infrastructure projects.
Suited for light construction loading, rental fleet deployment, urban infrastructure work, road construction support, and municipal projects. Lower overall height and compact envelope match urban project access constraints.
Shares core part numbers with the XC938 series (XC938U, XC938E, XC938, XC938-EV) and other XCMG 3.5-ton class loaders — lower inventory carrying cost for fleet operators running mixed XCMG 3.5-ton rosters. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Bucket capacity | m³ | 2.1 |
| Operating weight | kg | 10300 |
| Rated power | kW | 92 |
| Rated load | kg | 3500 |
| Wheelbase | mm | 2900 |
| Dimensions (L×W×H) | mm | 7250×2482×3100 |
