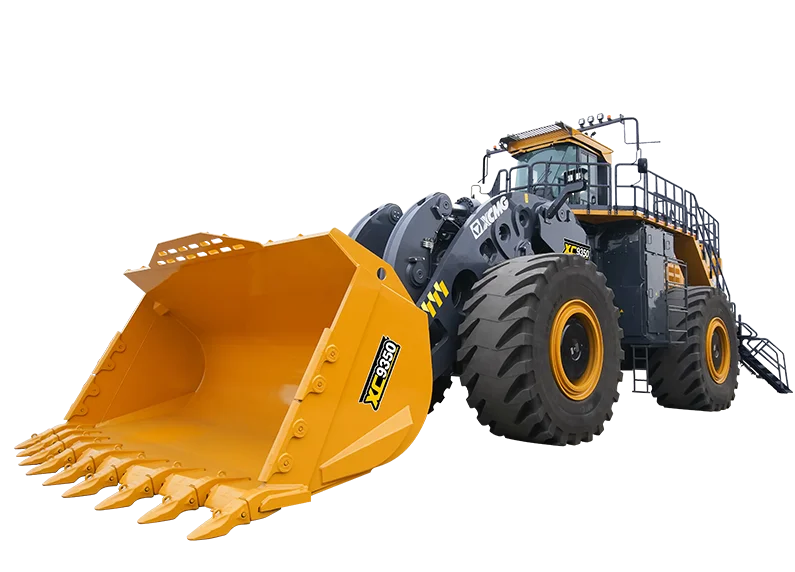

XCMG XC9350 Electric-Drive Mining Wheel Loader

40-ton operating capacity, 170-ton operating weight, 35000 kg rated load. China's largest-tonnage wheel loader — surpasses the prior XCMG LW1400KN record (the 1400 in LW1400KN refers to nominal capacity rating). Independent critical-technology development positions XCMG as the leader in super-large-tonnage loaders, breaking the prior international competitor monopoly.

970 kW rated power with four-wheel independent electrical-drive architecture. Each wheel has independent electric drive, enabling differential power management for traction control on uneven open-pit and strip mine surfaces. Eliminates conventional driveline and transmission components — fewer mechanical failure modes in the high-load mining duty cycle.

18 m³ bucket capacity. Sized to load XCMG 110-200 ton mining trucks in 3-5 passes for typical mining material densities. Direct pairing with XCMG's mining truck product range — fleet operators running XCMG haul trucks benefit from matched loader-truck cycle time tuning.

17.26 m overall length, 5.70 m overall width, 6.52 m overall height, 6.4 m wheelbase. Sized for large strip mine pit operations where haul road and stockpile work envelope accommodates super-large equipment. Per XCMG, optimal option for large strip mines, mining truck loading, and short-distance transportation.

XCMG super-large class loader lineup includes XC9150 (7.7 m³ / 15 t / 563 kW) and XC9350 (18 m³ / 40 t / 970 kW). Shared XCMG super-large class parts ecosystem and proprietary technology. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
