3 Ton Classic Wheel Loader — 92 kW
3-ton class classic wheel loader. 1.8 m³ bucket, 3000 kg rated load, 10400 kg operating weight, 92 kW rated power. 7.05 m × 2.48 m × 3.12 m envelope on 2.6 m wheelbase. The shortest wheelbase in the XCMG mid-class diesel loader range — tighter turning radius for narrow yard layouts. Documented water supply project dam construction deployment per XCMG references. Sits below the LW500FN (3.0 m³ / 162 kW / 17 t) in the LW classic series. Direct sibling to the XC938 base model.

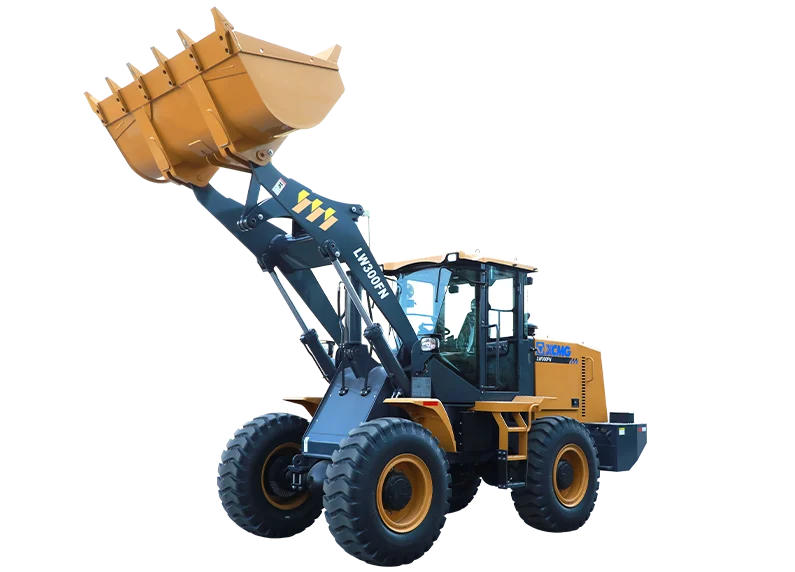

The XCMG LW300FN is a 3-ton class wheel loader with 1.8 m³ bucket, 3000 kg rated load, and 10400 kg operating weight — classic LW300 platform sized for coal yard, railway, construction area, and stone material factory work.
92 kW rated power on a 2.6 m wheelbase — the shortest wheelbase in the XCMG mid-class diesel loader range, supporting tighter turning radius in narrow yard layouts. 7.05 m × 2.48 m × 3.12 m envelope. Documented water supply project dam construction deployment per XCMG references. Sits below the LW500FN (3.0 m³ / 162 kW / 17 t) in the LW classic series. Direct sibling to the XC938 base model (1.8 m³ / 92 kW / 10.4 t same chassis category) — LW300FN is the classic LW platform spec, XC938 is the XC9 series equivalent. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
Five aspects of the LW300FN that fit it to 3-ton class classic diesel loading work: shortest wheelbase in mid-class range, water supply dam reference, classic LW platform lineage, cost-effective spec, and parts compatibility across the XCMG fleet.
2.6 m wheelbase — shortest in the XCMG mid-class diesel loader range. Tighter turning radius for narrow yard layouts: small coal yards, narrow railway loading sites, tight stone material factory facilities. 7.05 m overall length, 2.48 m width, 3.12 m height.
XCMG references LW300FN deployment at water supply project dam construction. 3-ton class bucket sizing fits dam aggregate, concrete material feed, and earthwork transfer cycles. Documented field reference for buyers evaluating the platform for similar infrastructure project work.
1.8 m³ bucket capacity, 3000 kg rated load, 92 kW rated power, 10400 kg operating weight. Same 92 kW power and 1.8 m³ bucket as the XC938 base model but with shorter 2.6 m wheelbase (vs 2.9 m XC938) and slightly lower rated load (3000 vs 3500 kg).
Part of the LW classic series alongside the LW500FN (5-ton class) and LW1200KN (12-ton mining). Proven LW platform with extensive in-service history. Choose LW300FN for the classic LW spec, XC938 for the XC9 series equivalent at 3.5-ton class.
Shares core part numbers with LW500FN parent series and XC938 platform-equivalent — lower inventory carrying cost for fleet operators running mixed XCMG LW classic / XC9 series rosters. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Bucket capacity | m³ | 1.8 |
| Operating weight | kg | 10400 |
| Rated power | kW | 92 |
| Rated load | kg | 3000 |
| Wheelbase | mm | 2600 |
| Dimensions (L×W×H) | mm | 7050×2482×3118 |
